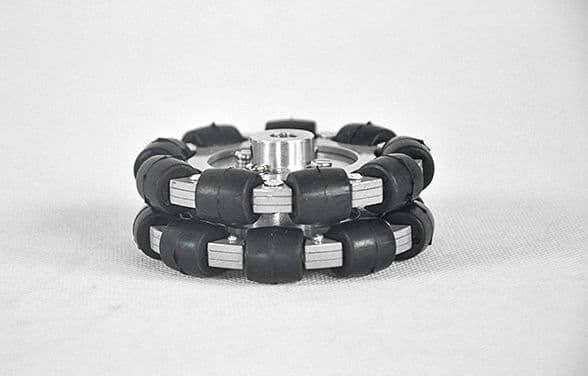

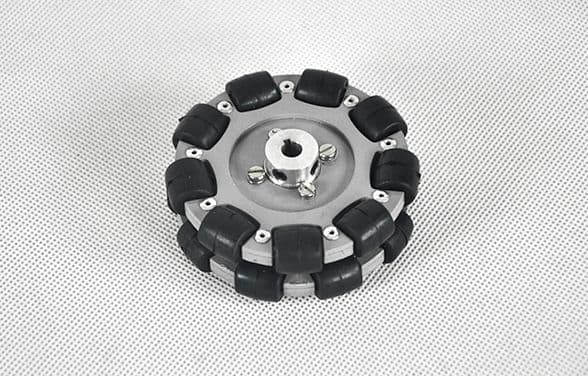

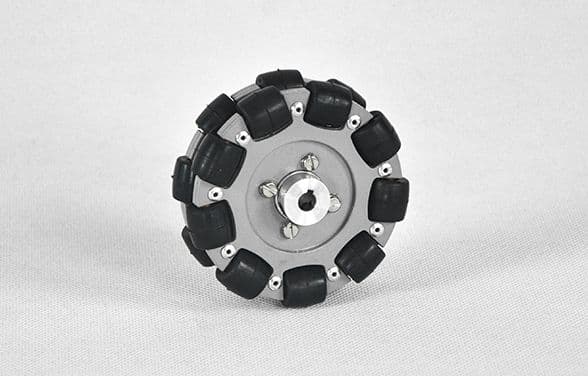

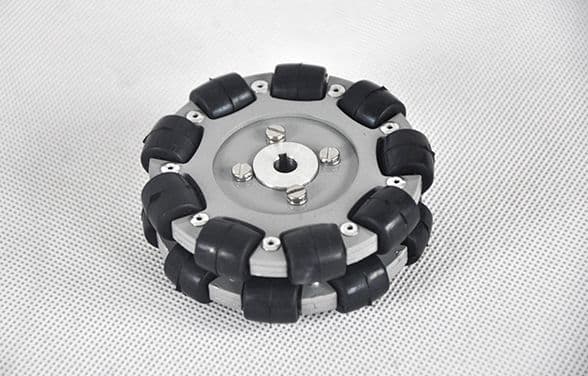

QL-08
Product Briefing
QL系列全向轮(omni wheel)是精密型的轻载90°全向轮，每个从动小轮内嵌入两个滚动轴承，旨在向客户提供高精密度、高品质要求的产品，满足客户的各种精密应用。持续改良的QL系列全向轮，已经实现了从动小轮轴向零间隙，特别适合于各种小型机器人的驱动应用。
Product Characteristics
zero clearance in axial direction of driven wheel
Double Multi-subdivision design
2 bearings embedded in every driven wheel
high quality rubber
high-temperature painting technology
steadly improving Ql series omni wheel
Exterior Dimension
Specification Parameters
| Diameter(mm) | 76.2（3"）mm | Wide(mm) | 28mm |
| Wheels | 18 | Bearing | 36 |
| Bearing Type | Rolling Bearing | Wheel Material | Rubber |
| Hub Material | Aluminum | Hub Surface Treatment | High-Temperature Painting |
| Mount | Flat key/Set Screws | Typical Middle Hole Size(mm) | 4/5/6/8mm |
| Weight(g) | 140g | Load(kg) | 15Kg |
| Diameter(mm) | 76.2（3"）mm |
| Wheels | 18 |
| Bearing Type | Rolling Bearing |
| Hub Material | Aluminum |
| Mount | Flat key/Set Screws |
| Weight(g) | 140g |
| Wide(mm) | 28mm |
| Bearing | 36 |
| Wheel Material | Rubber |
| Hub Surface Treatment | High-Temperature Painting |
| Typical Middle Hole Size(mm) | 4/5/6/8mm |
| Load(kg) | 15Kg |
