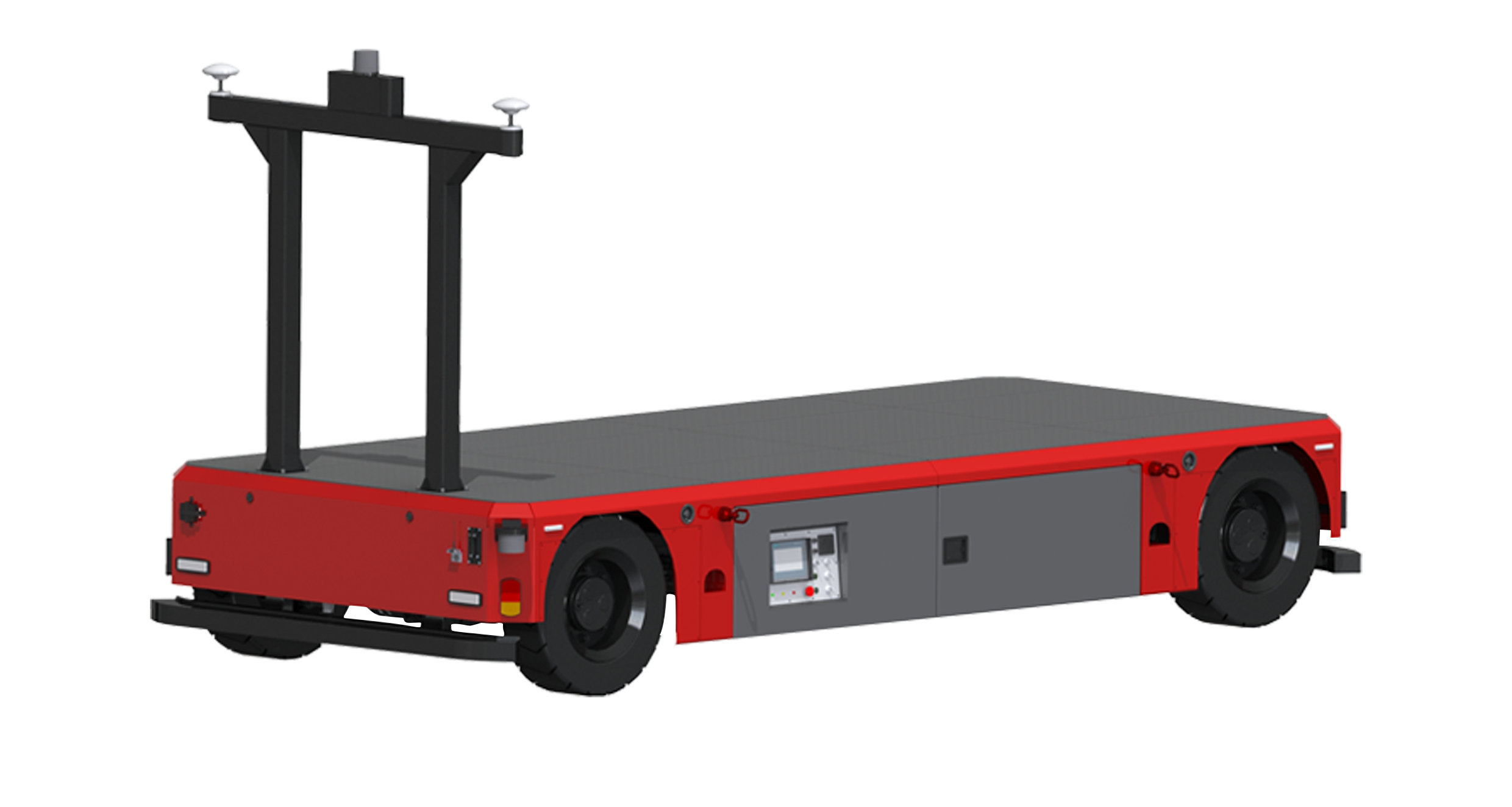

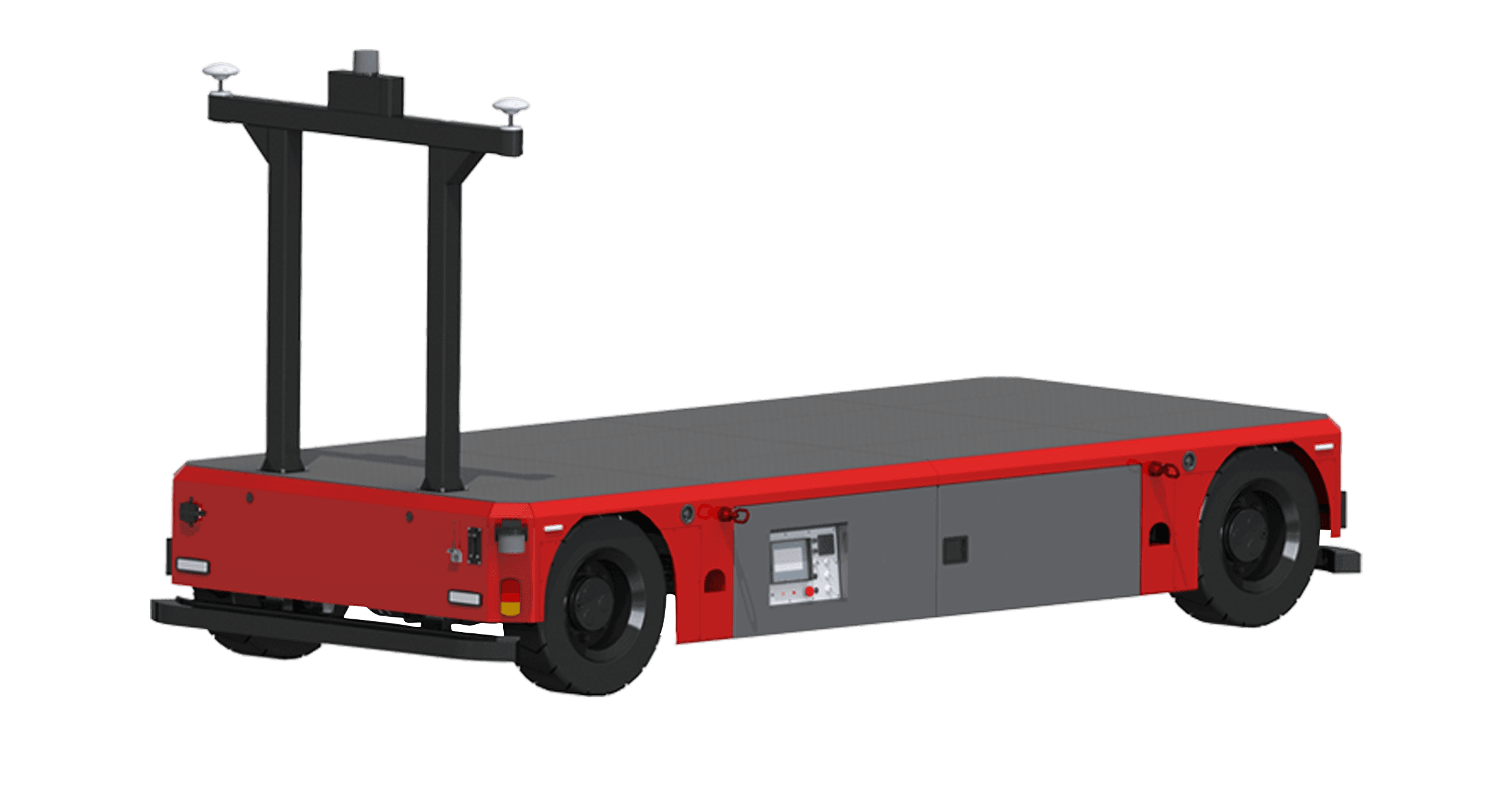

P SeriesBridge Transporter

The P Series bridge-type transport vehicle offers a load capacity of 0 to 60 tons per single vehicle...

P SeriesBridge Transporter

The P Series bridge-type transport vehicle offers a load capacity of 0 to 60 tons per single vehicle...

Single vehicle load capacity: 0–60 t

New energy vehicle power system

3D radar + BeiDou RTK navigation

Maximum travel speed: 10 km/h

Automotive-grade rubber tires

Adaptable to outdoor conditions: rain, snow, low temperature

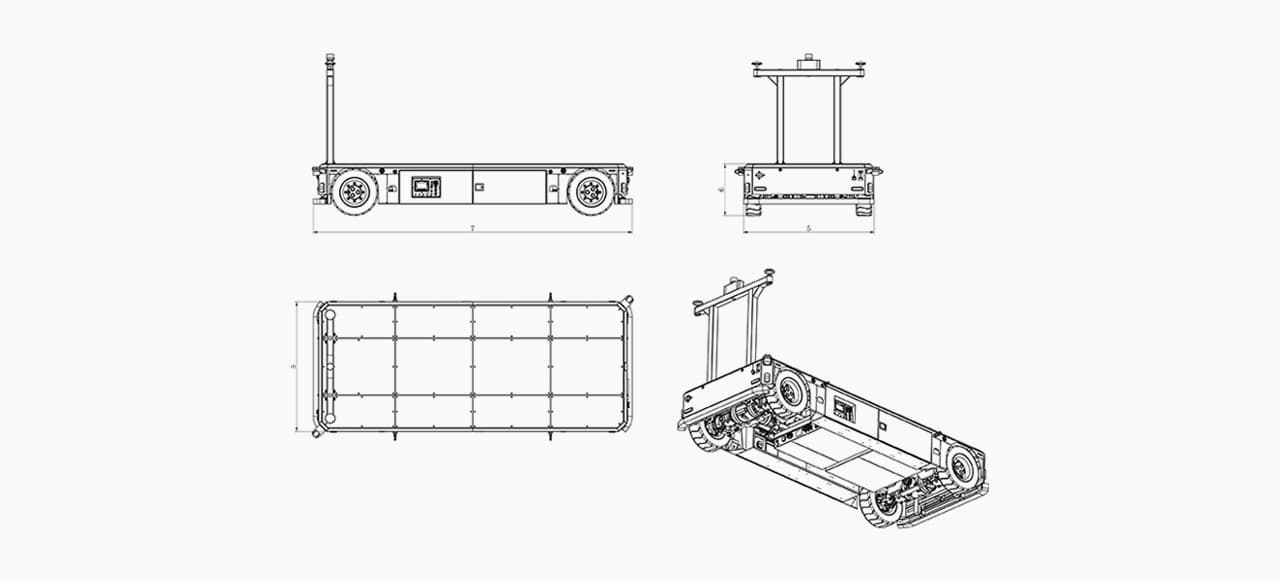

Product Appearance

Motion modes

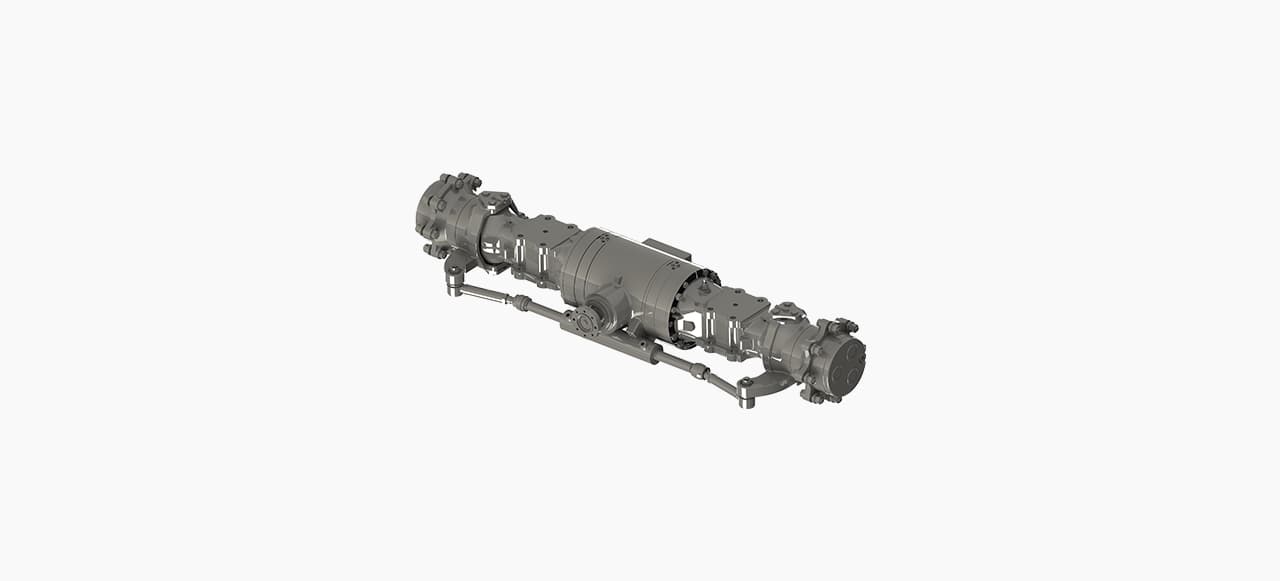

Axle / running gear

Rubber tires

Outdoor navigation and safety systems

Product Appearance

Motion modes

Axle / running gear

Rubber tires

Outdoor navigation and safety systems

Parameter

Product specifications
Model	P10	P25	P60
Length mm (L)	4500	6500	8000
Width mm (W)	2000	2500	3000
Height mm (low position Hmin)	700	1000	1500
Lifting type	Customizable lifting platform (not included in height dimensions above)
Lifting stroke	Custom
Load Capacity
Vehicle dead weight (t)	4	6	10
Load capacity (t)	10	25	60
Power Supply
Battery type	LiFePO₄ battery
Battery capacity (kWh)	56	110	170
Typical range	50 km (based on combined condition: half load, half unloaded)
Fast/slow charge time	2h/8h
Charger power supply	AC380V
Drive
Number of drive units	Double-axle steering, rearaxle drive
Motor type	Permanent magnet synchronous motor
Suspension type	Pendulum suspension
Wheel type	Solid rubber tire / pneumatic rubber tire
Max ground pressure	5Mpa
Mobility Characteristics
Min. turning radius (m)	5	6.5	7.5
Travel speed	0-10km/h		0-6km/h
Motion functions	Straight travel, crab steering, turning, etc. – see Motion Functions section for details
Environmental Conditions
Suitable floor surfaces	Concrete, selfleveling, asphalt, steel plate, etc.
Gradeability (full load)	5%
Gradeability (no load)	>20% (interference between ground and frame must be considered)
Protection rating	>20% (interference between ground and frame must be considered)
Operating environment	Temperature: –25 to +45 °C; Humidity: 0–95% noncondensing
Storage environment	Temperature: –20 to +50 °C; Humidity: 0–95% noncondensing
Control Mode
Control mode	Remote control / automatic navigation / commands from upper computer
Fault rescue function	External towing

Product specifications
Model	P10	P25	P60
Length mm (L)	4500	6500	8000
Width mm (W)	2000	2500	3000
Height mm (low position Hmin)	700	1000	1500
Lifting type	Customizable lifting platform (not included in height dimensions above)
Lifting stroke	Custom
Load Capacity
Vehicle dead weight (t)	4	6	10
Load capacity (t)	10	25	60
Power Supply
Battery type	LiFePO₄ battery
Battery capacity (kWh)	56	110	170
Typical range	50 km (based on combined condition: half load, half unloaded)
Fast/slow charge time	2h/8h
Charger power supply	AC380V
Drive
Number of drive units	Double-axle steering, rearaxle drive
Motor type	Permanent magnet synchronous motor
Suspension type	Pendulum suspension
Wheel type	Solid rubber tire / pneumatic rubber tire
Max ground pressure	5Mpa
Mobility Characteristics
Min. turning radius (m)	5	6.5	7.5
Travel speed	0-10km/h		0-6km/h
Motion functions	Straight travel, crab steering, turning, etc. – see Motion Functions section for details
Environmental Conditions
Suitable floor surfaces	Concrete, selfleveling, asphalt, steel plate, etc.
Gradeability (full load)	5%
Gradeability (no load)	>20% (interference between ground and frame must be considered)
Protection rating	>20% (interference between ground and frame must be considered)
Operating environment	Temperature: –25 to +45 °C; Humidity: 0–95% noncondensing
Storage environment	Temperature: –20 to +50 °C; Humidity: 0–95% noncondensing
Control Mode
Control mode	Remote control / automatic navigation / commands from upper computer
Fault rescue function	External towing
