WH SeriesWind Turbine Blade Two-Transporter Linkage Transporters

At present four different load capacities are available namely 15t*2 20t*2 30t*2 and 60t*2 which are mainly used for the transfer of wind turbine blades and frames between the various stations in the workshop from the workshop to the outdoor open-air warehouse from the open-air warehouse to the delivery location and from the delivery location to the plant.

WH SeriesWind Turbine Blade Two-Transporter Linkage Transporters

30~120t load capacity after linked

80m Linkage distance to apply for 130m blade

The rotable stage allows the blades to betransported only under axial force

The maximum speed can reach 1m/s

The internal stress ofsome models can becontrolled when linked

The floating chassis design can adapt to the drainage slope of large-area sites and the slope in and out ofthe workshop

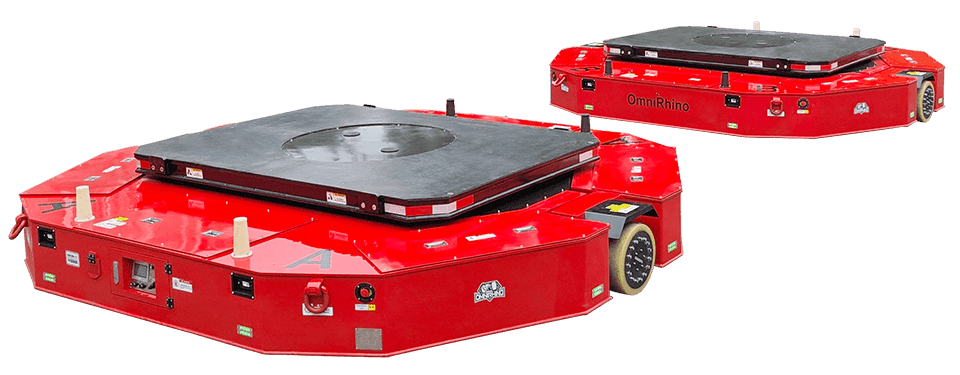

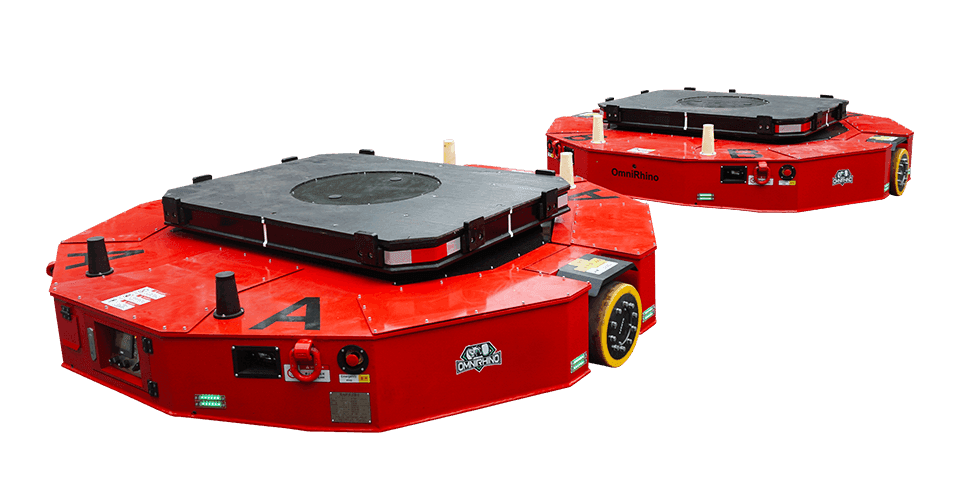

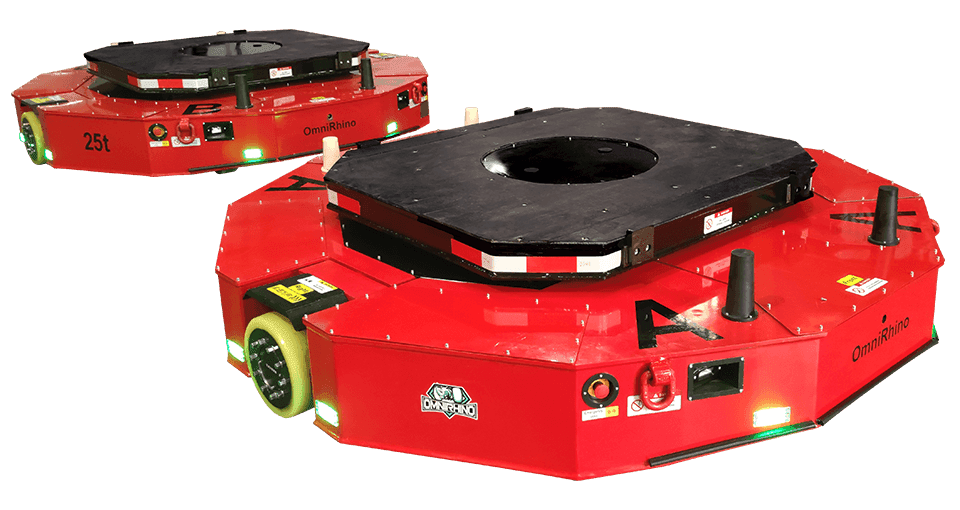

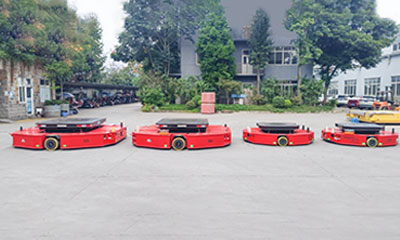

Product Appearance

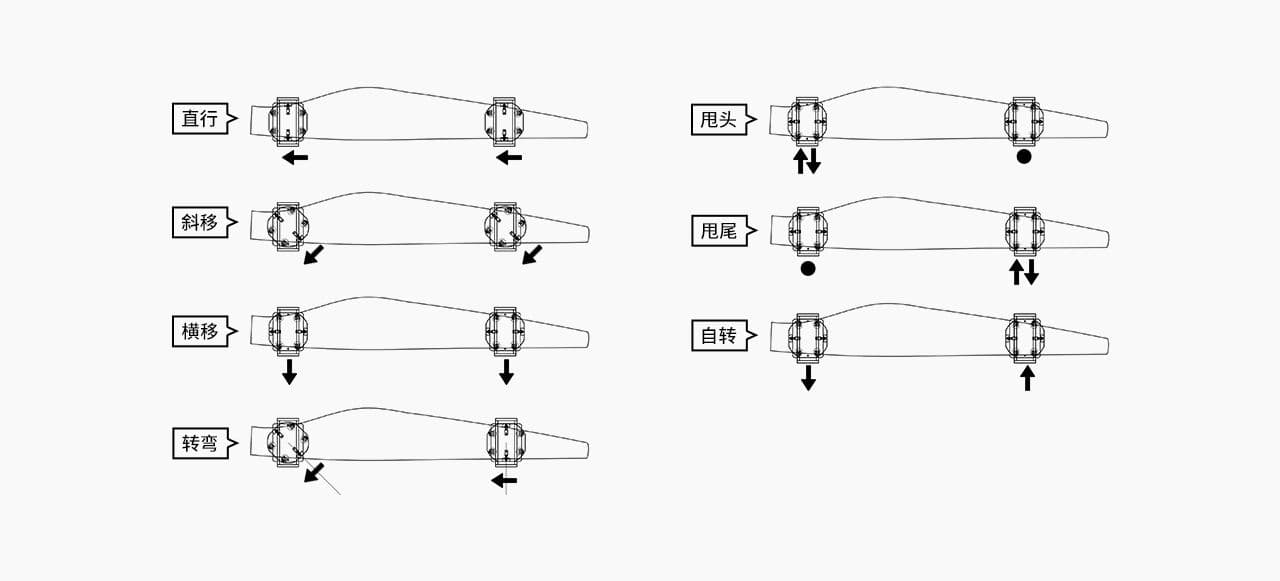

WH Movement Mode

WH30

WH60C

WH60

WH120

WH30

WH60C

WH60

WH120

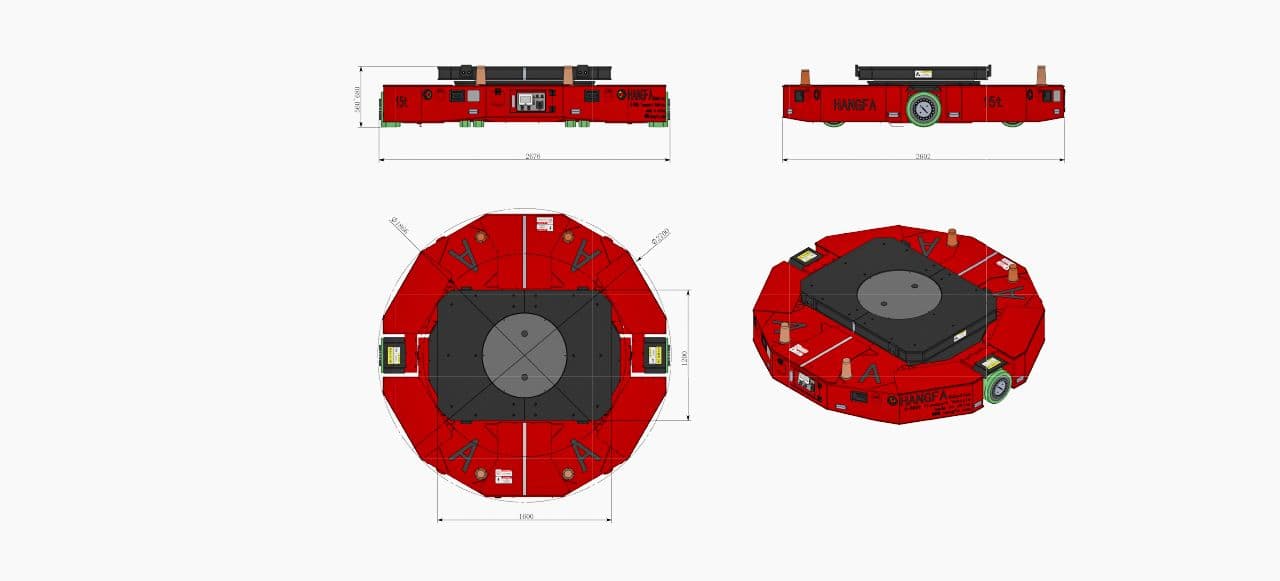

Product Appearance

WH30

WH60C

WH60

WH120

WH30

WH60C

WH60

WH120

WH Movement Mode

Parameter

After selecting the table, use the keyboard directional keys to swipe left and right ← →

Product Specifications
Model No（One set contains two units)	WH30	WH40	WH60C	WH60	WH120
Overall Dimensions Rotation Diameter mm	2700		3200	4200	4500
Overall Dimensions（Height）mm（Low state）	560		660		810
Lifting Stroke mm	120		150
Loading Platform Size mm	1600×1200		1900×1600	2600×1850	2700×2200
Load Capacity
Rated Load Capacity t（for one unit）	15	20	30		60
Rated Load Capacity t（for one set）	30	40	60		120
Net Weight t（for one unit）	5	5	6.5	8.5	10
Power Source
Battery Type	Maintenance-free lead-acid batteries		Lithium iron phosphate battery
Battery Capacity kWh	14.4		25		50
Typical Cruising Range(20℃，half distance for full load andhalf distance for no load)	8Km	7Km	8Km		8Km
Typical Battery Endurance	Two shifts
Charging Time	8h		4h
Standby Time	＞72h
Charger Power Supply（Other voltages optional）	AC220V/AC380V
Basic Features
Maximum Center Distance of Two Units Linkage	80m
Driving Wheel Diameter mm	330		410		500
Ice and Snow Wheel	Optional
Drive Motor Type	Brushless servo motor
Suspension /Self-lifting Type	Independent hydraulic lift table
Maximum Ground Pressure	10Mpa
Movement Features
Minimum Turning Radius	0m
Rated Moving Speed	0~0.85m/s		0~0.6m/s
Maximum Moving Speed	0~1m/s
Lifting Speed	300mm/min		200mm/min
Moving Adjustable Accuracy	±3mm
Lifting Adjustable Accuracy	±5mm
Environment Condition
Applicable Ground	Concrete, self leveling, steel plate flooring, etc
Full Load Climbing Ability(T1)	2%（Continuous ramp. For example, the drainage slope of a large area）
Full Load Climbing Abilit(T2）	6%（Short ramp. For example, a short ramp in and out of a workshop）
No Load Climbing Ability	20%（consider the interference between the ground and the vehicle frame or set up a transition arc）
Protection Level	IP54（Adaptable to outdoor work in light rain and snowy days）
Working Environment	Temperature：-30~+50℃；Humidity：0~95%，no condensation
Storage Environment	Temperature：-15~+50℃；Humidity：0~95%，no condensation
Other
Control Mode	Remote control operation
Movement Function for One Unit	Go straight, rotate, turn
Movement Function for Two Units Linkage	Straight movement, diagonal movement, lateral movement, rotation, turning, head flick, tail flick and compound movements
Weight Measurement Function	Weight measurement, overload alarm
Fault Rescue Function	Lift platform is manually lowered and wheels are unlocked
Other Function	Night operating lighting and speakers

Product Specifications
Model No（One set contains two units)	WH30	WH40	WH60C	WH60	WH120
Overall Dimensions Rotation Diameter mm	2700		3200	4200	4500
Overall Dimensions（Height）mm（Low state）	560		660		810
Lifting Stroke mm	120		150
Loading Platform Size mm	1600×1200		1900×1600	2600×1850	2700×2200
Load Capacity
Rated Load Capacity t（for one unit）	15	20	30		60
Rated Load Capacity t（for one set）	30	40	60		120
Net Weight t（for one unit）	5	5	6.5	8.5	10
Power Source
Battery Type	Maintenance-free lead-acid batteries		Lithium iron phosphate battery
Battery Capacity kWh	14.4		25		50
Typical Cruising Range(20℃，half distance for full load andhalf distance for no load)	8Km	7Km	8Km		8Km
Typical Battery Endurance	Two shifts
Charging Time	8h		4h
Standby Time	＞72h
Charger Power Supply（Other voltages optional）	AC220V/AC380V
Basic Features
Maximum Center Distance of Two Units Linkage	80m
Driving Wheel Diameter mm	330		410		500
Ice and Snow Wheel	Optional
Drive Motor Type	Brushless servo motor
Suspension /Self-lifting Type	Independent hydraulic lift table
Maximum Ground Pressure	10Mpa
Movement Features
Minimum Turning Radius	0m
Rated Moving Speed	0~0.85m/s		0~0.6m/s
Maximum Moving Speed	0~1m/s
Lifting Speed	300mm/min		200mm/min
Moving Adjustable Accuracy	±3mm
Lifting Adjustable Accuracy	±5mm
Environment Condition
Applicable Ground	Concrete, self leveling, steel plate flooring, etc
Full Load Climbing Ability(T1)	2%（Continuous ramp. For example, the drainage slope of a large area）
Full Load Climbing Abilit(T2）	6%（Short ramp. For example, a short ramp in and out of a workshop）
No Load Climbing Ability	20%（consider the interference between the ground and the vehicle frame or set up a transition arc）
Protection Level	IP54（Adaptable to outdoor work in light rain and snowy days）
Working Environment	Temperature：-30~+50℃；Humidity：0~95%，no condensation
Storage Environment	Temperature：-15~+50℃；Humidity：0~95%，no condensation
Other
Control Mode	Remote control operation
Movement Function for One Unit	Go straight, rotate, turn
Movement Function for Two Units Linkage	Straight movement, diagonal movement, lateral movement, rotation, turning, head flick, tail flick and compound movements
Weight Measurement Function	Weight measurement, overload alarm
Fault Rescue Function	Lift platform is manually lowered and wheels are unlocked
Other Function	Night operating lighting and speakers

Case

Wind Power

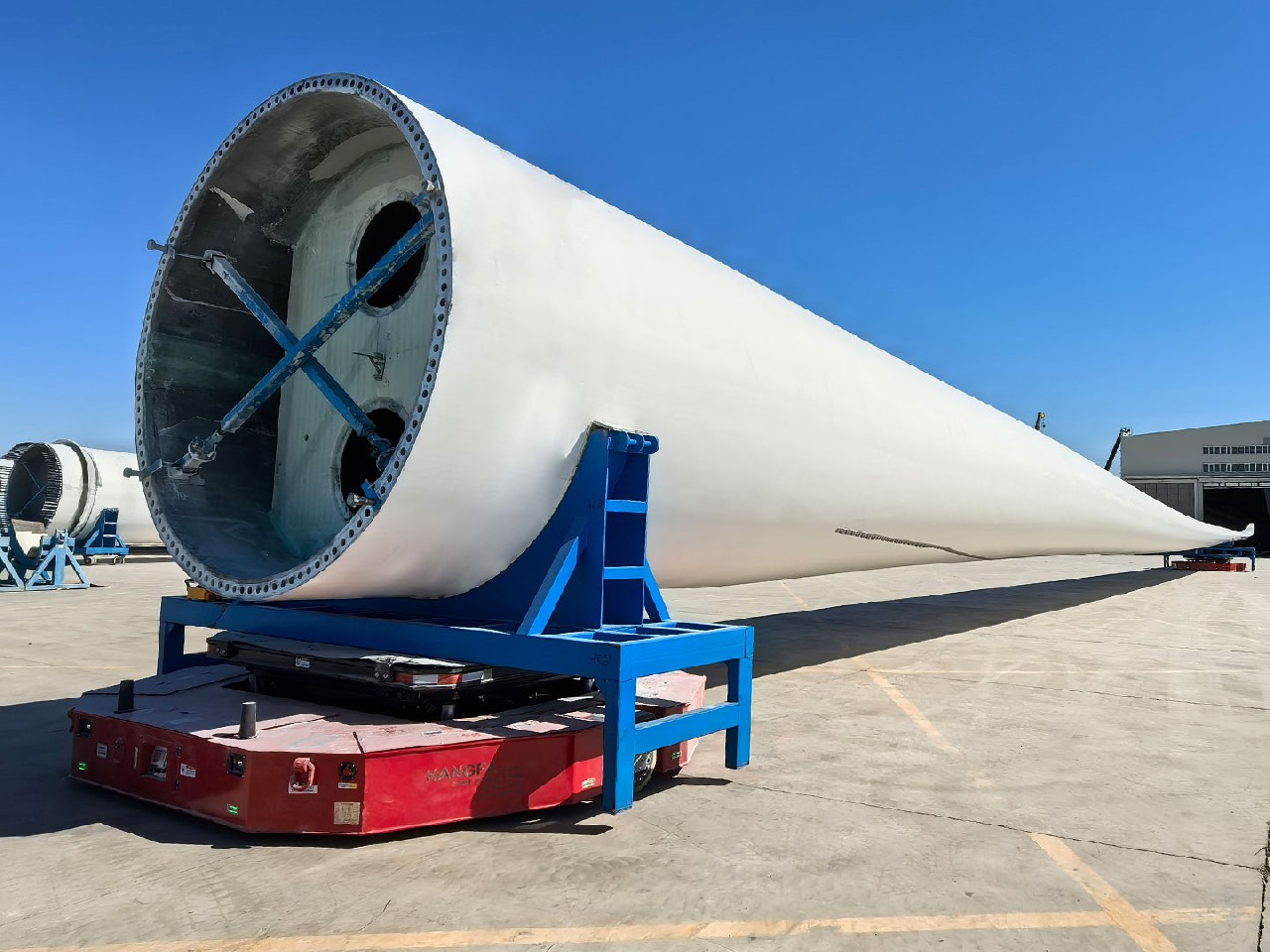

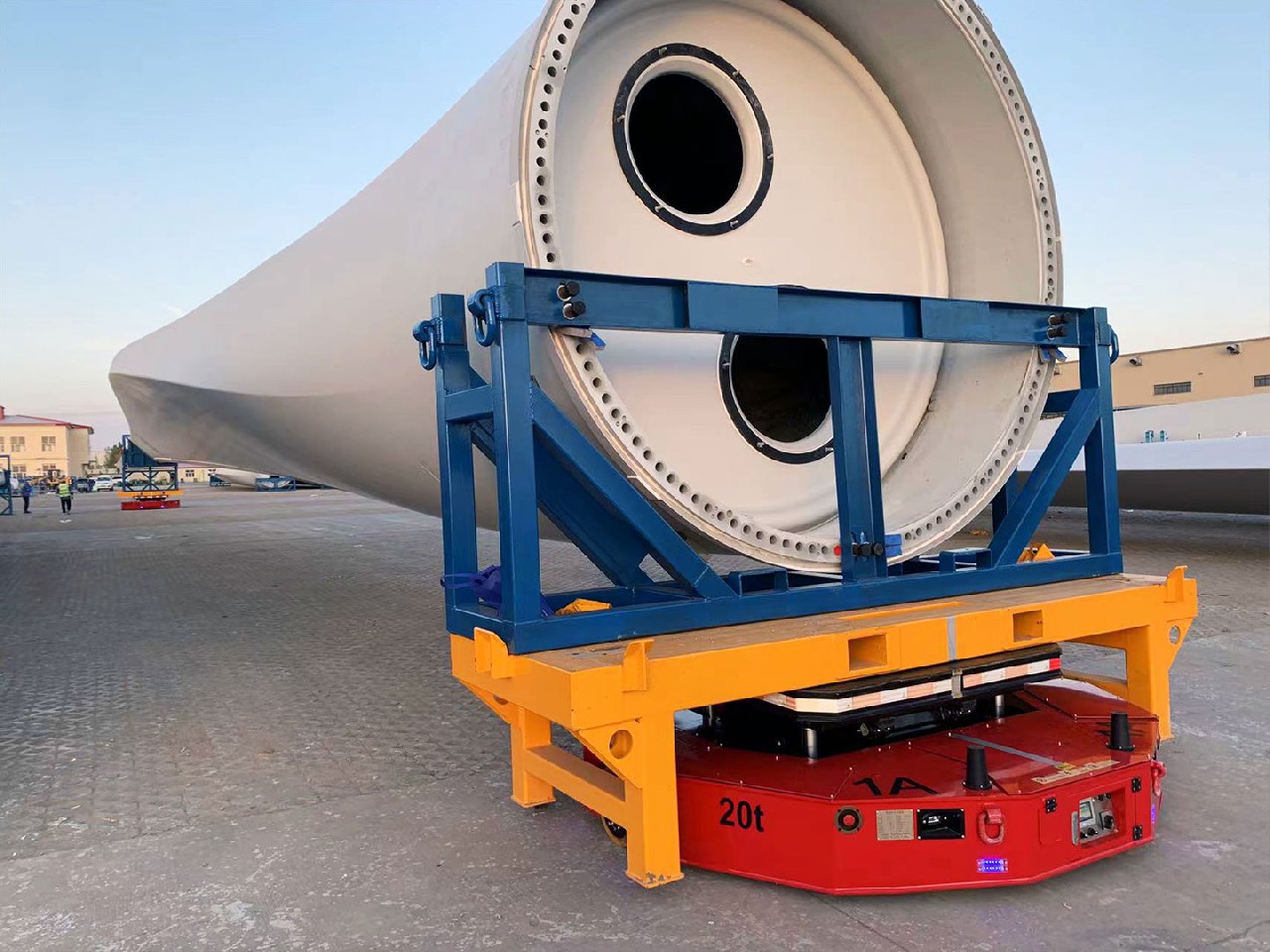

Application of 60t dual vehicle linked wind turbine blade transfer vehicle for blade transfer

#AGV #HeavyDutyAGV #HeavyDutyAGVManufacturer #AGVTransportVehicle #OmniDirectionalAGV #OmniDirection

More >

Wind Power

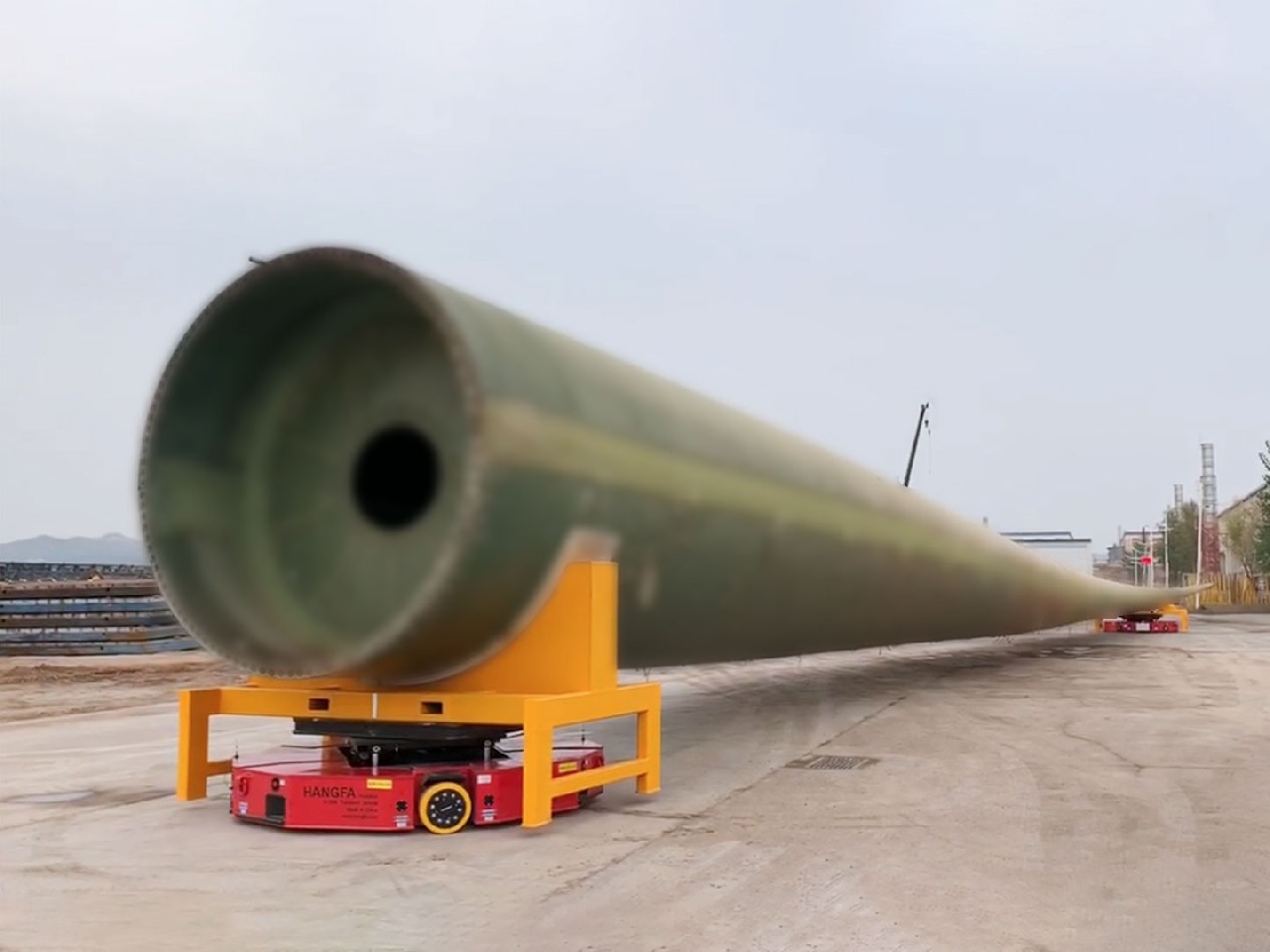

Application of 60t Wind Turbine Blade Transfer Vehicle in the Transfer of Wind Turbine Blades
