QMA series
Series Introduction
QMA series omni wheel is 45-degree light payload omni wheel. 2 ball bearings embedded in every driven wheel, Using high precision manufacturing process , it is aimed to supply the products with high accuracy and high quality to satisfy the customers’ various applications. QMA series omni wheel has achieved small clearance in axial direction of driven wheel with steady improvement, they can be especially used on different small robots.
Parameter Comparison
- Product
- Diameter(mm)
- Wide(mm)
- Wheels
- Bearing
- Bearing Type
- Wheel Material
- Hub Material
- Hub Surface Treatment
- Mount
- Typical Middle Hole Size(mm)
- Weight(g)
- Load(kg)

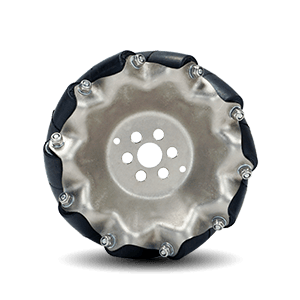

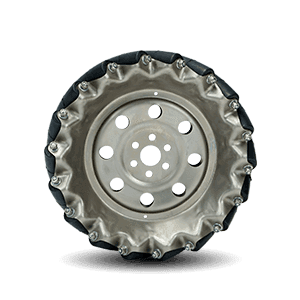

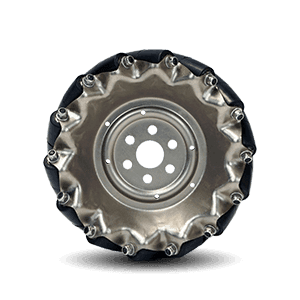

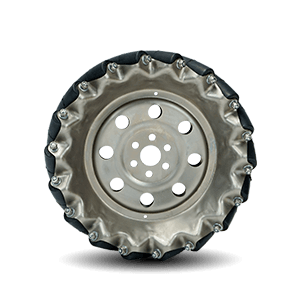

| Product |  |  |  |
| Diameter(mm) | 101.6（4"）mm | 152.4（6"）mm | 203.2（8"）mm |
| Wide(mm) | 45.7mm | 53mm | 53.8mm |
| Wheels | 10 | 14 | 18 |
| Bearing | 20 | 28 | 36 |
| Bearing Type | Rolling Bearing | Rolling Bearing | Rolling Bearing |
| Wheel Material | Rubber | Rubber | Rubber |
| Hub Material | Steel | Steel | Steel |
| Hub Surface Treatment | Electronickelling | Electronickelling | Electronickelling |
| Mount | Flange | Flange | Flange |
| Typical Middle Hole Size(mm) | 12mm | 20mm | 20mm |
| Weight(g) | 350g | 770g | 1200g |
| Load(kg) | 30Kg | 35Kg | 40Kg |
Product Briefing
Produced by high precious technology
The wheel hub, molded by cold compressing steel plates ,is light to carry and has stable quality. The holes are punched by 5-axis machining center after cold compression molding, which ensures the final accuracy of the wheel hub.
Small clearance in axial direction of driven wheel
Using manufacturing technology with high precision and operating compensation process for the clearance during the final assembly process maintains the clearance in axial direction of driven wheel in small range .
Multi-subdivision design
Even if the frame is not precise , the multi-subdivision of the circumference can make it stably operate .Avoiding the drawback of up and down vibration from usual omni wheel .
2 bearings embedded in every driven wheel
2 miniature bearings are embedded in every driven wheel , changing the sliding friction on driven wheel into rolling friction, smoothly the lateral movement , and truly realizing micro-resistance in lateral movement of omni wheel .
High quality rubber
The driven wheel adopts high-quality rubber , accompany with drum-shape and appropriate hardness.The Ql series omni wheel shows strong grip ability and almost silent in the process of measuring and testing on wood , tile, carpet and so on.
Nickel-plated on the hub surface
Nickel-plated on the hub surface , attractive and durable.
Continuous improving QMA series omni wheel
Steady improvement is the traits of Hangfa product, it can ensure the customers get the best products and service
