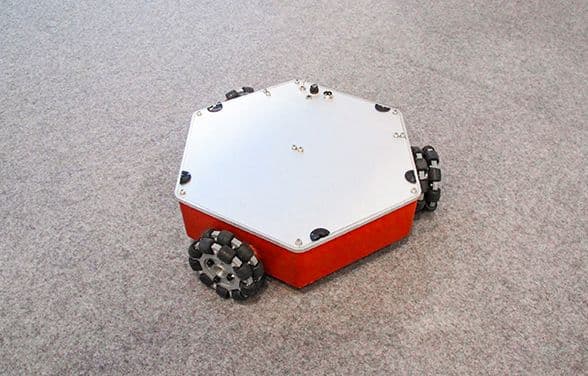

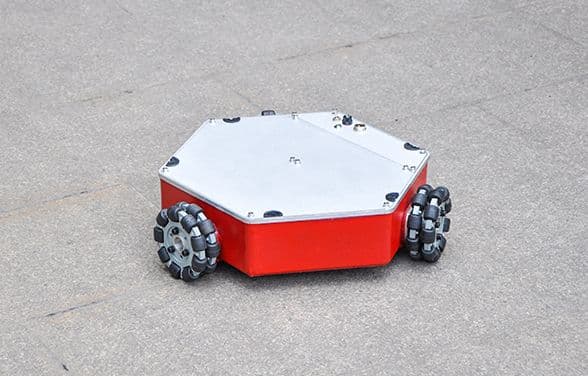

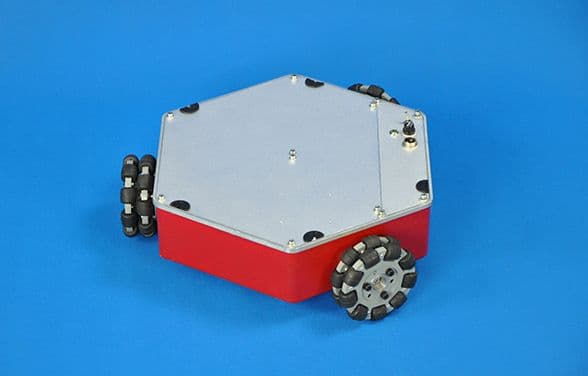

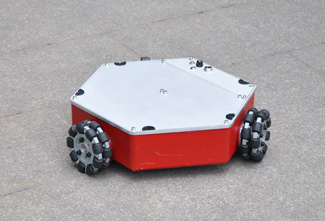

Compass Q1 three-wheeled omni-directional platform
Product Briefing

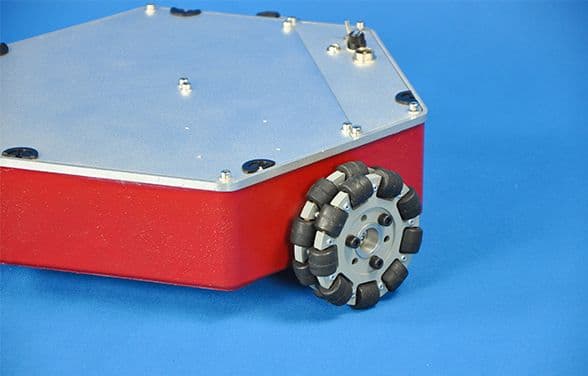

The Compass series is a small fundamental robot platform. It aims to provide users with a complete mobile robot system with high reliability and multiple interfaces. Compass Q1 is a robot platform with three 90 degrees QL-10 omni wheels. Compared with the traditional gear train, the QL-10 omni wheel is able to accomplish many special movements, like translation, rotation, and simultaneous translation & rotation.The chassis of this platform adopts overall aluminum casting & molding process. Compass Q1 uses three high-power coreless motors as the driver, equipped with multi-axis servo driver, supporting both CAN bus and RS232 interface. The development kit provides customers with a complete equipment communication protocol, and also provides examples and demo application source code based on STM32F407, which allows users quickly know how to operate Compass Q1

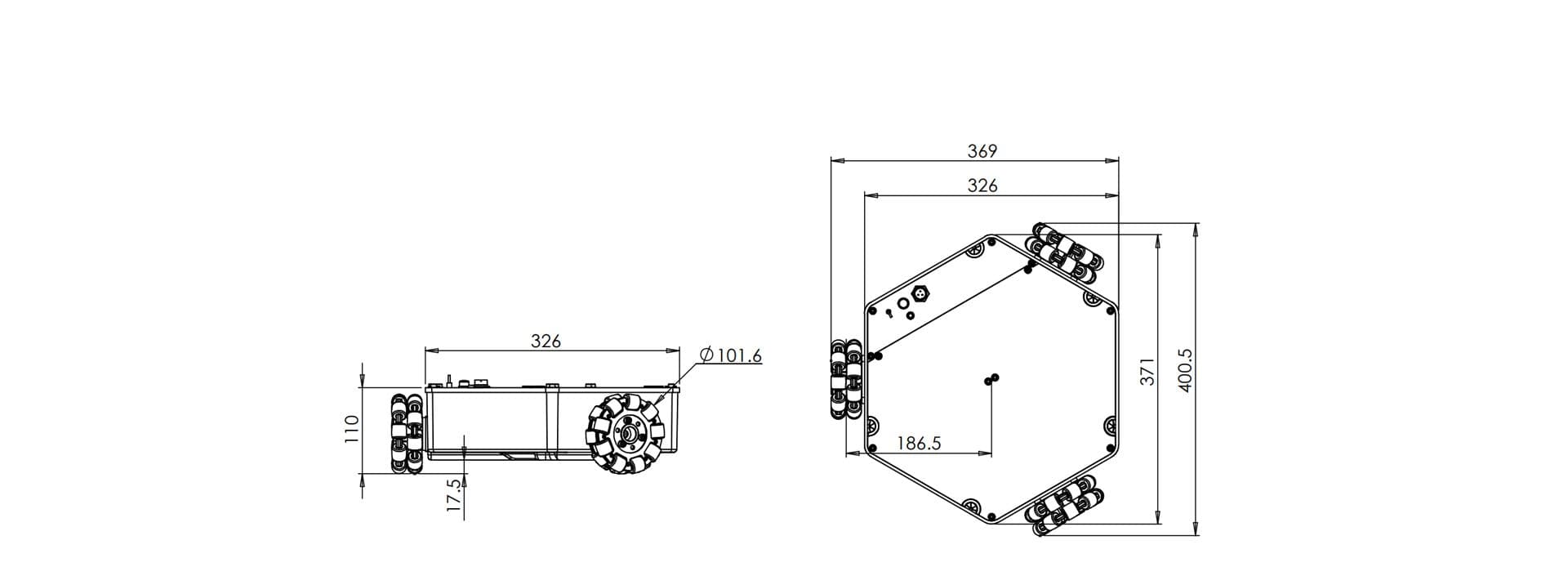

Exterior Dimension
Specification Parameters
| Fuselage Form | Aluminum alloy one-piece molding | Overall Dimension | 369×400.5×110 |
| Driving Wheel | QL-10 Omni-directional Wheel | Diameter of Driving Wheel | 101.6mm |
| Driving Method | Three-wheel independent drive | Suspension Form | No suspension |
| Minimum Ground Clearance | 17.5mm | Weight | 7.1kg |
| Rated load Capacity | 20kg | Motor Type | Hollow Cup DC Servo Motor |
| Motor Rated Power | 30W | Motor Encoder | 500 lines/revolution, A and B phase outputs |
| Number of Motors | 3 | Motor Drive | Servo drive, CAN bus, RS232 communication interface |
| Maximum Travel Speed | 1.2m/s | Maximum Rotation Speed | 365°/s |
| Minimum Turning Radius | 0m | Adaptable Terrain | Indoor and outdoor concrete and asphalt pavements with fewer potholes |
| Typical Endurance | Approx. 10h (load 10kg, operating speed 1m/s, operating rate 70%) | Standby Time | >30h |
| On-board Power Output | 5V@2.5A / 12V@2.5A / Battery voltage (22.4~29.2V)@>5A | Power Fuse Preset Specification | 5×20/10A |
| Battery | 24V/7.8Ah lithium-ion battery | Battery Quick Change | Support |
| Charger | Input:AC220V~240V / Charging current:3A / Interface:Plug-in type | Accessory | Battery charger, ULB-1 ultrasonic transducer × 5 |
| DEMO Board | RHF407 development board (CAN×2, RS232×2, TTL×1, RS485×1, SPI×1, I2C×1, ADC×8, DAC×2, PWM×8, LED×2, keypad×2, independent I/O×24, reusable I/O×29, TF card interface×1, RTC backup battery holder, reusable TFT LCD interface×1) | ||
| Fuselage Form | Aluminum alloy one-piece molding |
| Driving Wheel | QL-10 Omni-directional Wheel |
| Driving Method | Three-wheel independent drive |
| Minimum Ground Clearance | 17.5mm |
| Rated load Capacity | 20kg |
| Motor Rated Power | 30W |
| Number of Motors | 3 |
| Maximum Travel Speed | 1.2m/s |
| Minimum Turning Radius | 0m |
| Typical Endurance | Approx. 10h (load 10kg, operating speed 1m/s, operating rate 70%) |
| On-board Power Output | 5V@2.5A / 12V@2.5A / Battery voltage (22.4~29.2V)@>5A |
| Battery | 24V/7.8Ah lithium-ion battery |
| Charger | Input:AC220V~240V / Charging current:3A / Interface:Plug-in type |
| Overall Dimension | 369×400.5×110 |
| Diameter of Driving Wheel | 101.6mm |
| Suspension Form | No suspension |
| Weight | 7.1kg |
| Motor Type | Hollow Cup DC Servo Motor |
| Motor Encoder | 500 lines/revolution, A and B phase outputs |
| Motor Drive | Servo drive, CAN bus, RS232 communication interface |
| Maximum Rotation Speed | 365°/s |
| Adaptable Terrain | Indoor and outdoor concrete and asphalt pavements with fewer potholes |
| Standby Time | >30h |
| Power Fuse Preset Specification | 5×20/10A |
| Battery Quick Change | Support |
| Accessory | Battery charger, ULB-1 ultrasonic transducer × 5 |
| DEMO Board | RHF407 development board (CAN×2, RS232×2, TTL×1, RS485×1, SPI×1, I2C×1, ADC×8, DAC×2, PWM×8, LED×2, keypad×2, independent I/O×24, reusable I/O×29, TF card interface×1, RTC backup battery holder, reusable TFT LCD interface×1) |
