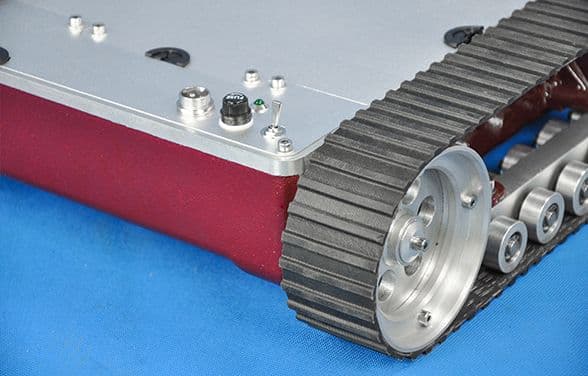

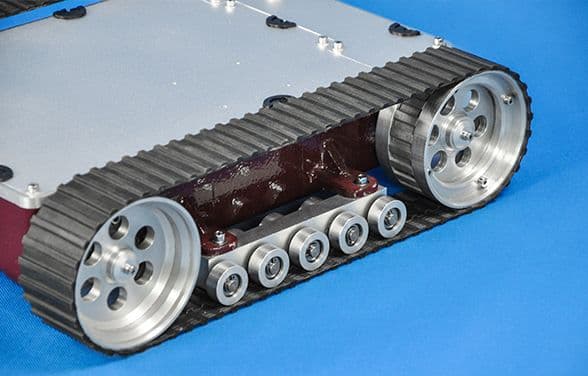

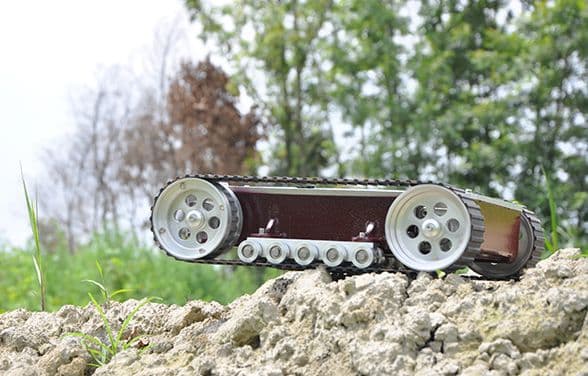

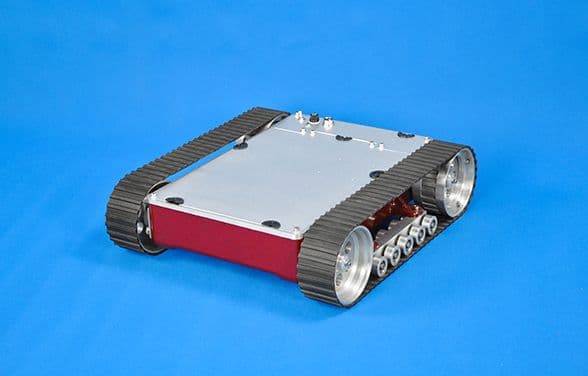

Compass L1 Crawler Platform
Product Briefing
The Compass series is a small fundamental robot platform. It aims to provide users with a complete mobile robot system with high reliability and multiple interfaces. Compass L1 is is robot platform with crawler wheel system and the power system can choose two or four motors, which can adapt to all kinds of muddy, ravines, ladder working environment and complete all kinds of work efficiently. The chassis of this platform adopts overall aluminum casting & molding process. Compass L1 uses high-power coreless motor as the driver, equipped with multi-axis servo driver, supporting both CAN bus and RS232 interface. The development kit provides customers with a complete equipment communication protocol, and also provides examples and demo application source code based on STM32F407, which allows users quickly know how to operate Compass L1.

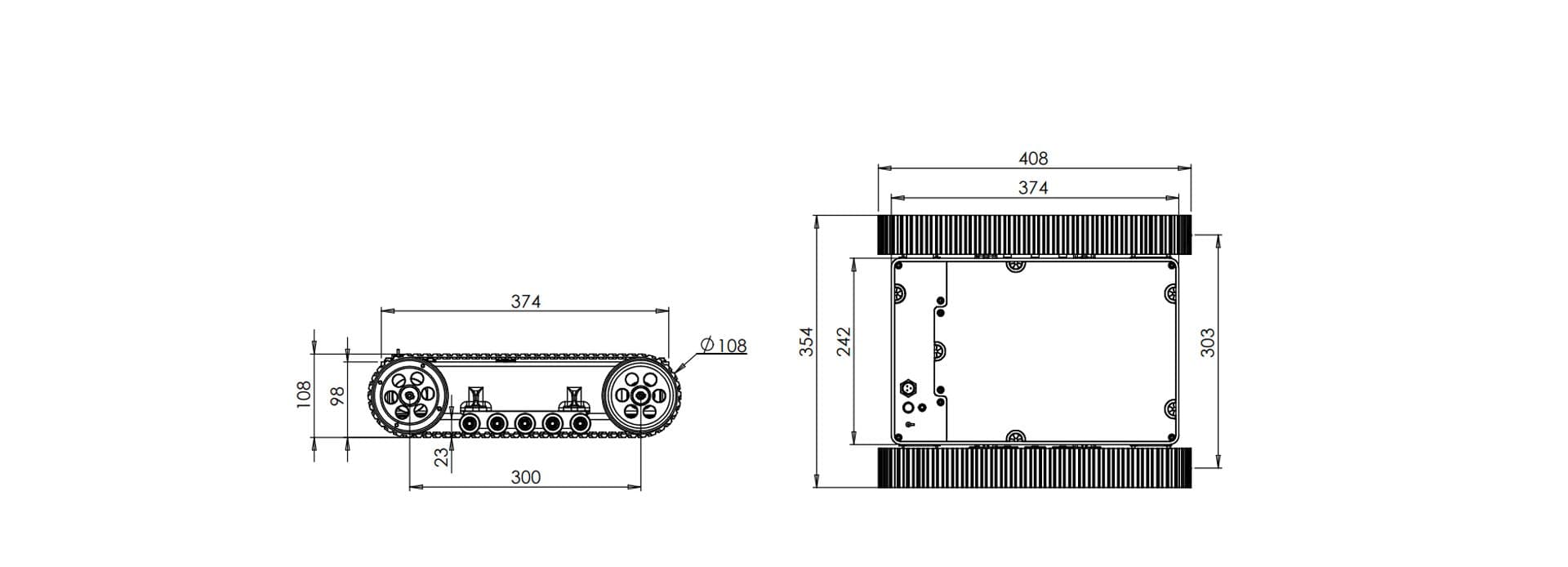

Exterior Dimension
Specification Parameters
| Fuselage Form | Aluminum alloy one-piece molding | Overall Dimension | 408×354×108 |
| Driving Wheel | Crawler Wheel | Diameter of Driving Wheel | 108mm |
| Driving Method | Two or four-wheel combining drive | Suspension Form | No suspension |
| Minimum Ground Clearance | 23mm | Weight | 9kg |
| Rated load Capacity | 30kg | Motor Type | Hollow Cup DC Servo Motor |
| Motor Rated Power | 30W | Motor Encoder | 500 lines/revolution, A and B phase outputs |
| Number of Motors | 2/4 | Motor Drive | Servo drive, CAN bus, RS232 communication interface |
| Maximum Travel Speed | 0.8m/s | Maximum Rotation Speed | 160°/s |
| Minimum Turning Radius | 0m | Adaptable Terrain | Indoor,bituminous ground ,concrete ground with little depression |
| Typical Endurance | Approx. 8h (load 10kg, operating speed 0.6m/s, operating rate 70%) | Standby Time | >30h |
| On-board Power Output | 5V@2.5A / 12V@2.5A / Battery voltage (22.4~29.2V)@>5A | Power Fuse Preset Specification | 5×20/10A |
| Battery | 24V/7.8Ah lithium-ion battery | Battery Quick Change | Support |
| Charger | Input:AC220V~240V / Charging current:3A / Interface:Plug-in type | Accessory | Battery charger, ULB-1 ultrasonic transducer × 5 |
| DEMO Board | RHF407 development board (CAN×2, RS232×2, TTL×1, RS485×1, SPI×1, I2C×1, ADC×8, DAC×2, PWM×8, LED×2, keypad×2, independent I/O×24, reusable I/O×29, TF card interface×1, RTC backup battery holder, reusable TFT LCD interface×1) | ||
| Fuselage Form | Aluminum alloy one-piece molding |
| Driving Wheel | Crawler Wheel |
| Driving Method | Two or four-wheel combining drive |
| Minimum Ground Clearance | 23mm |
| Rated load Capacity | 30kg |
| Motor Rated Power | 30W |
| Number of Motors | 2/4 |
| Maximum Travel Speed | 0.8m/s |
| Minimum Turning Radius | 0m |
| Typical Endurance | Approx. 8h (load 10kg, operating speed 0.6m/s, operating rate 70%) |
| On-board Power Output | 5V@2.5A / 12V@2.5A / Battery voltage (22.4~29.2V)@>5A |
| Battery | 24V/7.8Ah lithium-ion battery |
| Charger | Input:AC220V~240V / Charging current:3A / Interface:Plug-in type |
| Overall Dimension | 408×354×108 |
| Diameter of Driving Wheel | 108mm |
| Suspension Form | No suspension |
| Weight | 9kg |
| Motor Type | Hollow Cup DC Servo Motor |
| Motor Encoder | 500 lines/revolution, A and B phase outputs |
| Motor Drive | Servo drive, CAN bus, RS232 communication interface |
| Maximum Rotation Speed | 160°/s |
| Adaptable Terrain | Indoor,bituminous ground ,concrete ground with little depression |
| Standby Time | >30h |
| Power Fuse Preset Specification | 5×20/10A |
| Battery Quick Change | Support |
| Accessory | Battery charger, ULB-1 ultrasonic transducer × 5 |
| DEMO Board | RHF407 development board (CAN×2, RS232×2, TTL×1, RS485×1, SPI×1, I2C×1, ADC×8, DAC×2, PWM×8, LED×2, keypad×2, independent I/O×24, reusable I/O×29, TF card interface×1, RTC backup battery holder, reusable TFT LCD interface×1) |
Typical Components
Typical Research and Application Areas
Optional Accessories
