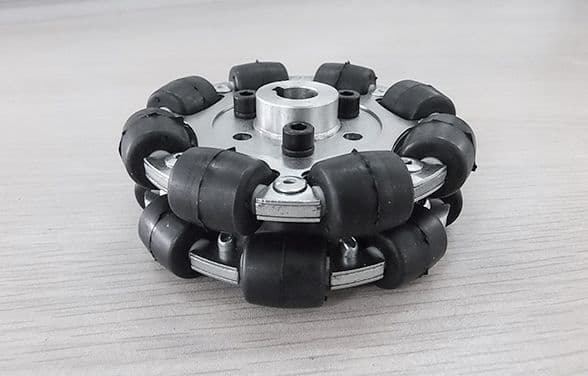

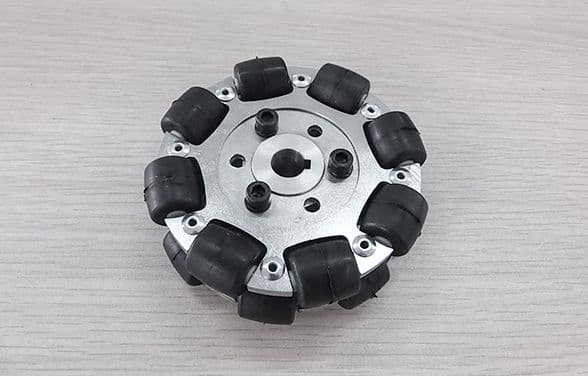

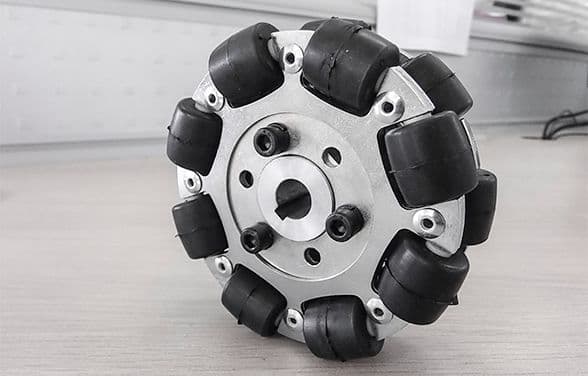

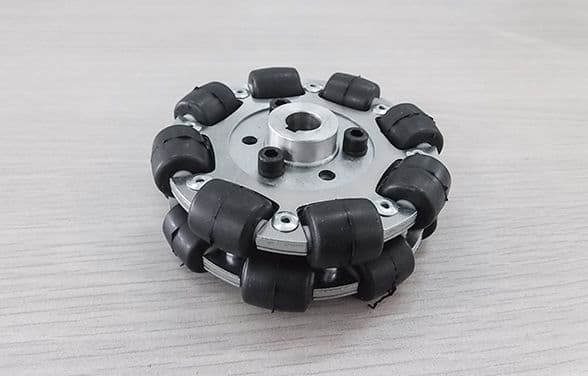

CL-10
Product Briefing
CL series omni wheel is 90-degree economy light load omni wheel . there are 2 nylon sliding bearings in every driven wheel . it is aimed to supply the products with high precise ,high economy and high endurance to customers. CL series omni wheel adopts rubber roller and galvanized steel hub , meanwhile it has various mounting dimensions to satisfy different applications.
Product Characteristics
high economy
steel hub
strong load capacity
reliable, long lifetime, stable quality

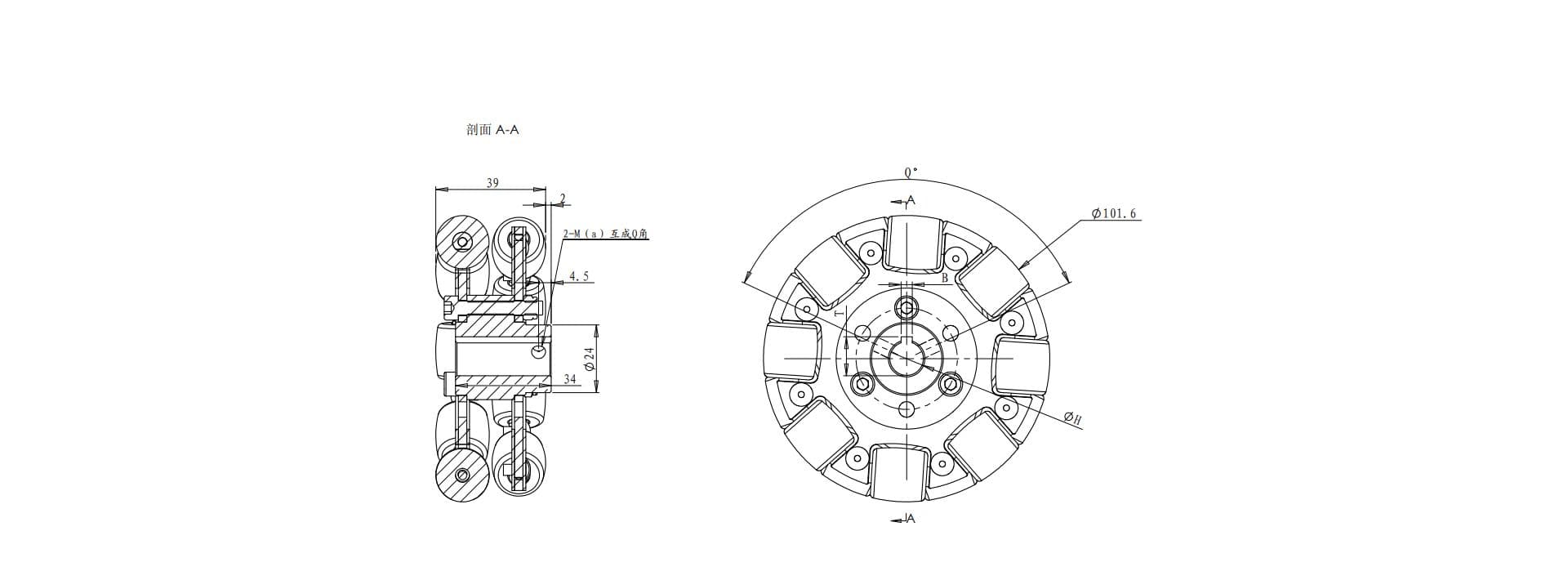

Exterior Dimension
Specification Parameters
| Diameter(mm) | 101.6（4"）mm | Wide(mm) | 39mm |
| Wheels | 16 | Bearing | 32 |
| Bearing Type | Nylon Sliding Bearing | Wheel Material | Rubber |
| Hub Material | Steel | Hub Surface Treatment | Electro-galvanized |
| Mount | Flat key/Hexagon Hole/Set Screws/Bearing supports | Typical Middle Hole Size(mm) | 5/6/7/8/9/10/12mm |
| Weight(g) | 430g | Load(kg) | 50Kg |
| Diameter(mm) | 101.6（4"）mm |
| Wheels | 16 |
| Bearing Type | Nylon Sliding Bearing |
| Hub Material | Steel |
| Mount | Flat key/Hexagon Hole/Set Screws/Bearing supports |
| Weight(g) | 430g |
| Wide(mm) | 39mm |
| Bearing | 32 |
| Wheel Material | Rubber |
| Hub Surface Treatment | Electro-galvanized |
| Typical Middle Hole Size(mm) | 5/6/7/8/9/10/12mm |
| Load(kg) | 50Kg |
