CMA-50
Product Briefing
CMA series Mecanum Wheel provide 4500KG payload maximum ,while maintaining high accuracy. This wheel uses integrated molding process, maximizing the mechanical properties of materials. All the CMA series omni wheels use rolling bearings, polyurethane materials on the driven wheel surfacewith good performance in stability , quietness, durability and omni-direction. They are able to adapt to various indoor and outdoor occasions.
Product Characteristics
integrated molding process hub , high intensity ,high stiffness
Rolling Bearing
payload between 0-4500KG
grade

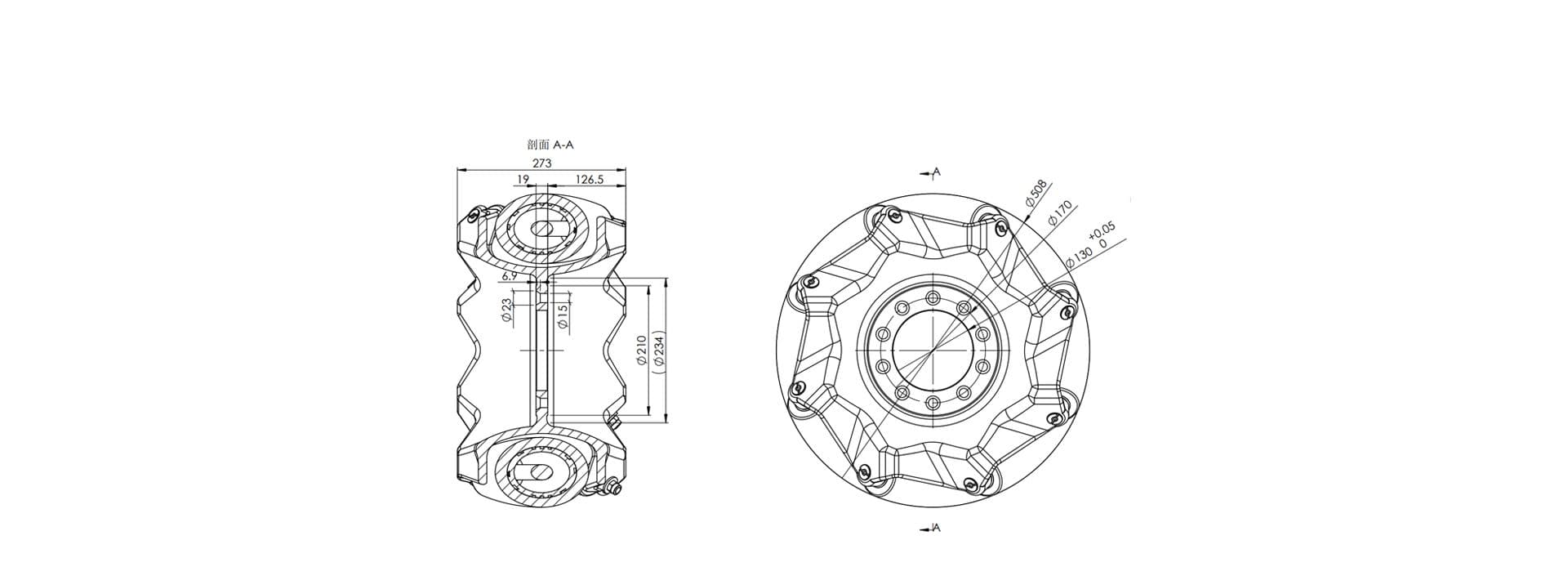

Exterior Dimension
Specification Parameters
| Diameter(mm) | 508mm | Wide(mm) | 273mm |
| Wheels | 8 | Bearing | 16 |
| Bearing Type | Rolling Bearing | Wheel Material | Polyurethane |
| Hub Material | Steel | Hub Surface Treatment | High Temperature Painting |
| Mount | Flange | Typical Middle Hole Size(mm) | 130mm |
| Weight(g) | 100Kg | Load(kg) | 2300Kg |
| Diameter(mm) | 508mm |
| Wheels | 8 |
| Bearing Type | Rolling Bearing |
| Hub Material | Steel |
| Mount | Flange |
| Weight(g) | 100Kg |
| Wide(mm) | 273mm |
| Bearing | 16 |
| Wheel Material | Polyurethane |
| Hub Surface Treatment | High Temperature Painting |
| Typical Middle Hole Size(mm) | 130mm |
| Load(kg) | 2300Kg |
