HMC-1 remote control handle
Product Briefing
Pathfinder remote control integrates a wide range of control devices, wireless and wired communications, wireless remote control that is farthest distances up to 300 meters. Using the remote control of industrial-grade components, and is equipped with a LCD panel data, users can open communication protocol implementations for various applications.
Product Characteristics

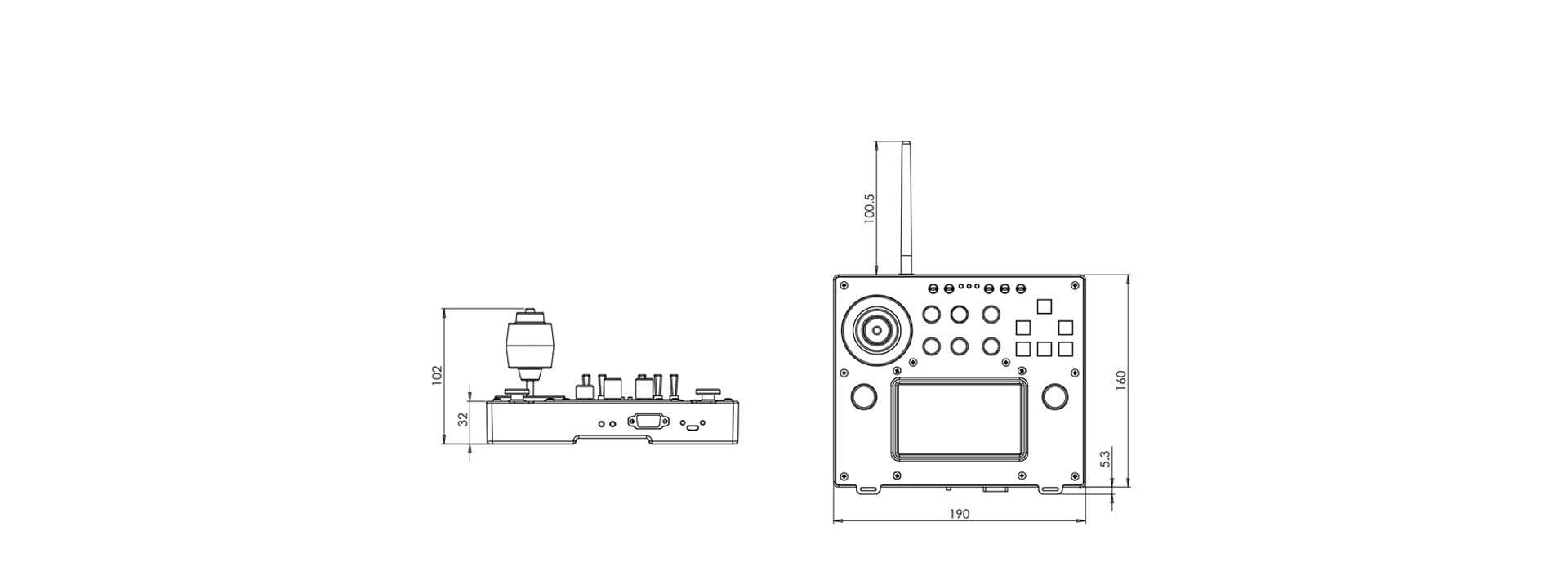

Exterior Dimension
Specification Parameters
body structure: | 190×160×102mm | Distance wireless communication reference： | 300m（Open space）/100m（Indoor shop space） |
Wired communication distance reference： | 10m | Wireless transceiver modules Communication Interface： | RS232/TTL/USB |
Wired Communication Interface： | RS232 | Wireless communication baud rate： | 4800/9600/19200 |
Wired communication baud rate： | 4800/9600/19200/38400/57600/115200 | Data update rate： | 1~150Hz（Wired）/1~50Hz（Wireless） |
Rocker： | 1个（X、Y、Z、D Axis） | Small rocker： | 2个（X、Y、D Axis） |
Rotary potentiometers： | 2个 | Rotating band switch： | 2个×6Document |
Rotary encoder： | 2个 | Toggle switch： | 5个×2Document |
Push button switch： | 6个 | Typical full time： | 12h(Brightness of the LCD screen is set to the highest） |
Typical recharge time: | 3h | Chargers Input voltage： | AC100V~240V |

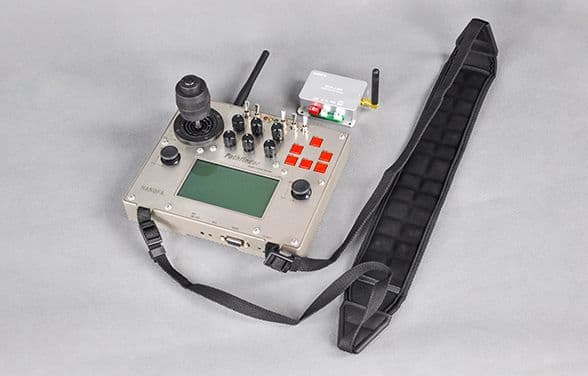

Annex： | Wireless transceiver modules×1、Charging adapter×1、Charging cable×1、Shoulder strap×1、CD×1 | ||
Typical Research and Application Areas
