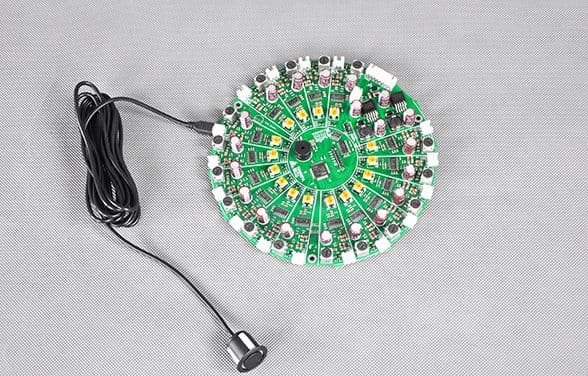

ULB-16
Product Briefing
ULB-16，16-channel integrated with ultrasonic detectors, unified and coordinated management, accurate fault location of objects within the 0.25~3 m. Users can take advantage of using methods, custom ranging module of 16 road works such as order grouping, ranging, and with RS232 communication via CAN bus, programming and data reading the entire module. The module can greatly simplify the coordination of parent device to multi-sensor management for easy system integration and increase system stability. 16 distance measurement sensor protection class IP65, able to adapt to outdoor applications.
Product Characteristics

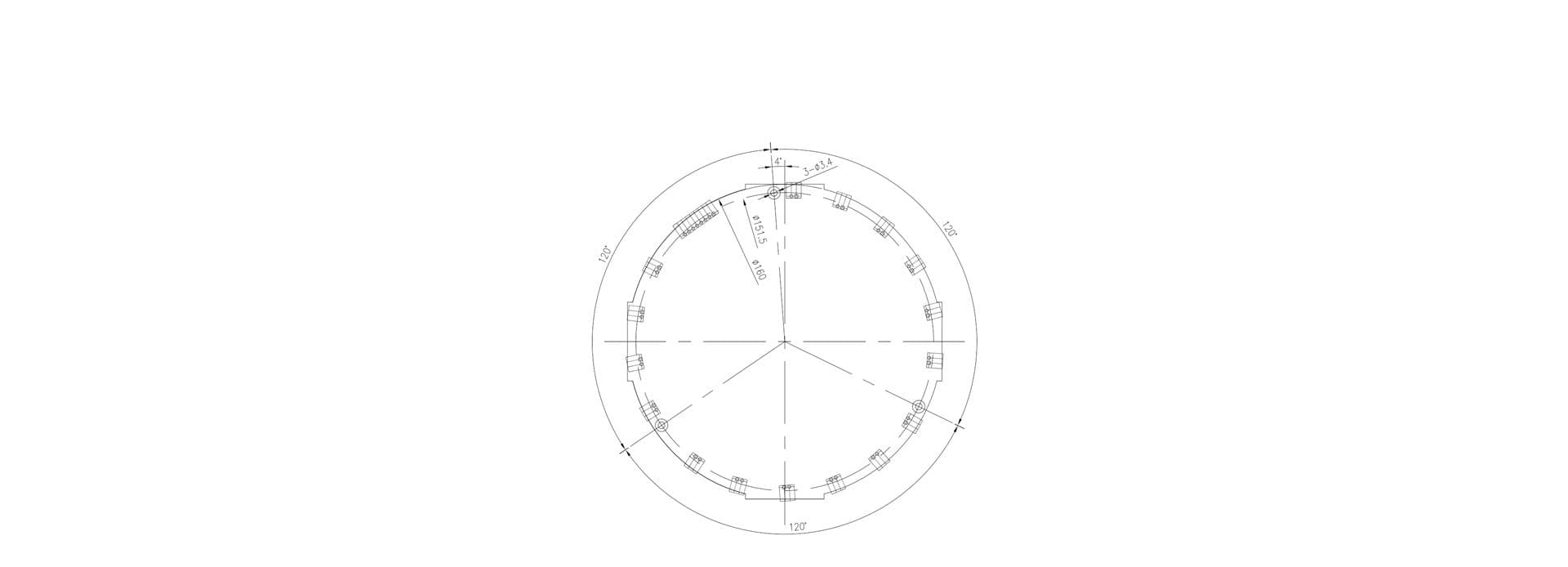

Exterior Dimension
Specification Parameters
Control Board Dimensions： | Diameter160mm | Range： | 0.25~3m |
Each probe maximum range frequency： | 50Hz | Number of sensors： | 16个 |
Sensor cable length： | 0.55m | Sensor protection rating： | IP65 |
Removable temperature compensation sensor： | Standard | Communication Interface： | CAN-bus, RS232 serial port |
Input voltage： | DC12V | Input voltage： | DC12V |
Typical standby current： | 100mA | Typical operating current： | 900mA |
Main parts： | Control Board×1、Ultrasonic ranging probe x 16, temperature sensor x 1 | ||
Typical Research and Application Areas
