ULB-1
Product Briefing

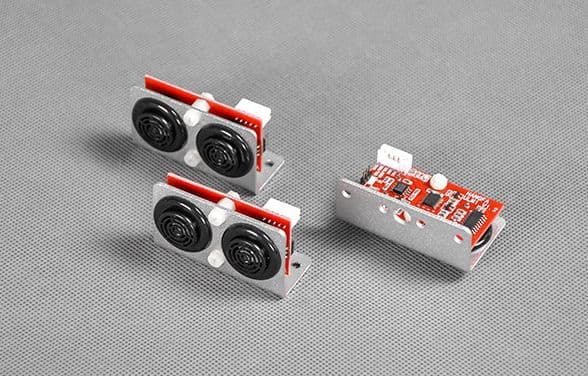

ULB-1 Sending and receiving separated probe, to range within 1cm~6m distance of objects. With i2C bus, UART (TTL-level) two data Interface, and comes standard with mounting bracket.
Product Characteristics
Industrial grade quality
Small blind region
I2C bus, and UART (TTL-level) two types of data Interface
Supports up to 32 sensors modules via a bus the cascade

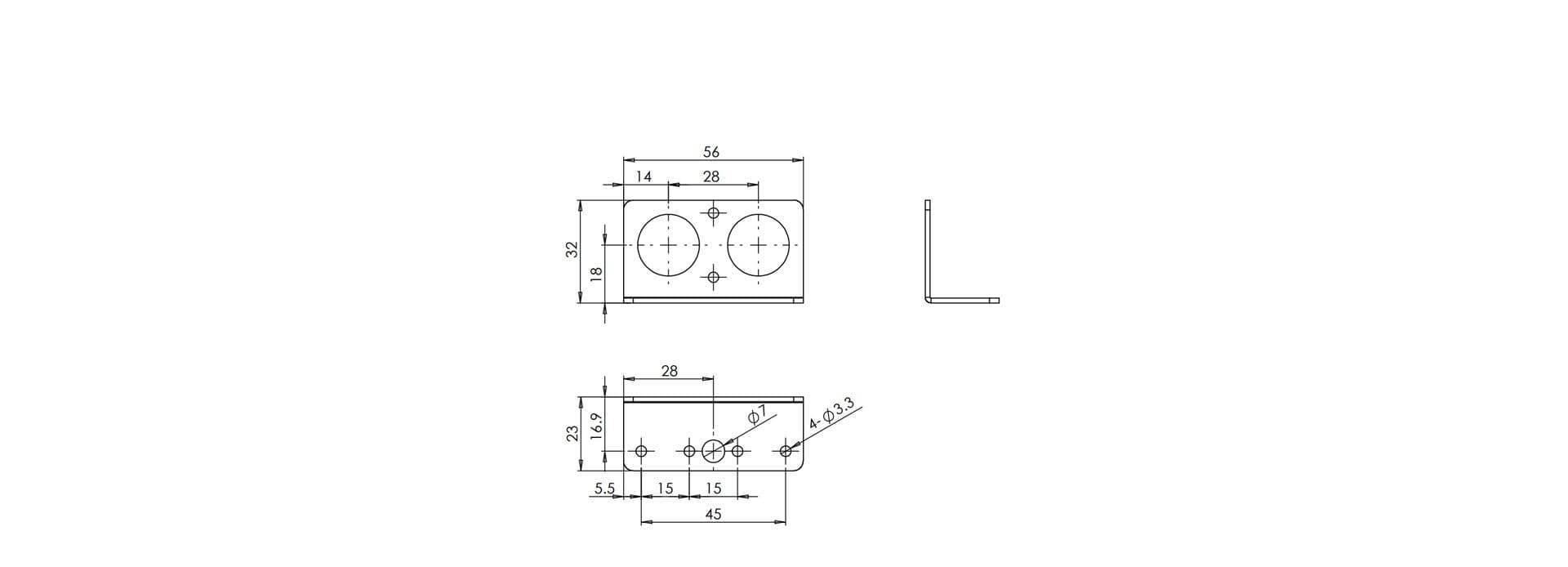

Exterior Dimension
Specification Parameters
body structure： | 56×28×32mm | Range： | 0.01~6m |
Each probe maximum range frequency： | 50Hz | Sensor type： | Sending and receiving separated |
Communication Interface： | i2C、UART serial (TTL-level) | Input voltage： | DC5V |
Typical standby current： | 30mA | Typical operating current： | 600mA |
Main parts： | Module X1, mortise mounting bracket X1, Terminal X10, CDx1 | ||
Typical Research and Application Areas
Robot
Industrial Automation
