MNS-16 Magnetic Navigation Sensor
Product Briefing
MNS-16 Magnetic Navigation Sensor is mainly used in the magnetic stripe navigation method of automatic guided vehicle AGV, automatic cart AGC, trackless mobile shelves, logistics picking and other industries. This magnetic navigation sensor adopts 16-channel fluxgate sampling point output. The measurement deviation, temperature drift, magnetic saturation performance, sensitivity and accuracy of the fluxgate sensor are better than those of Hall and magnetoresistive sensors.
Product Characteristics

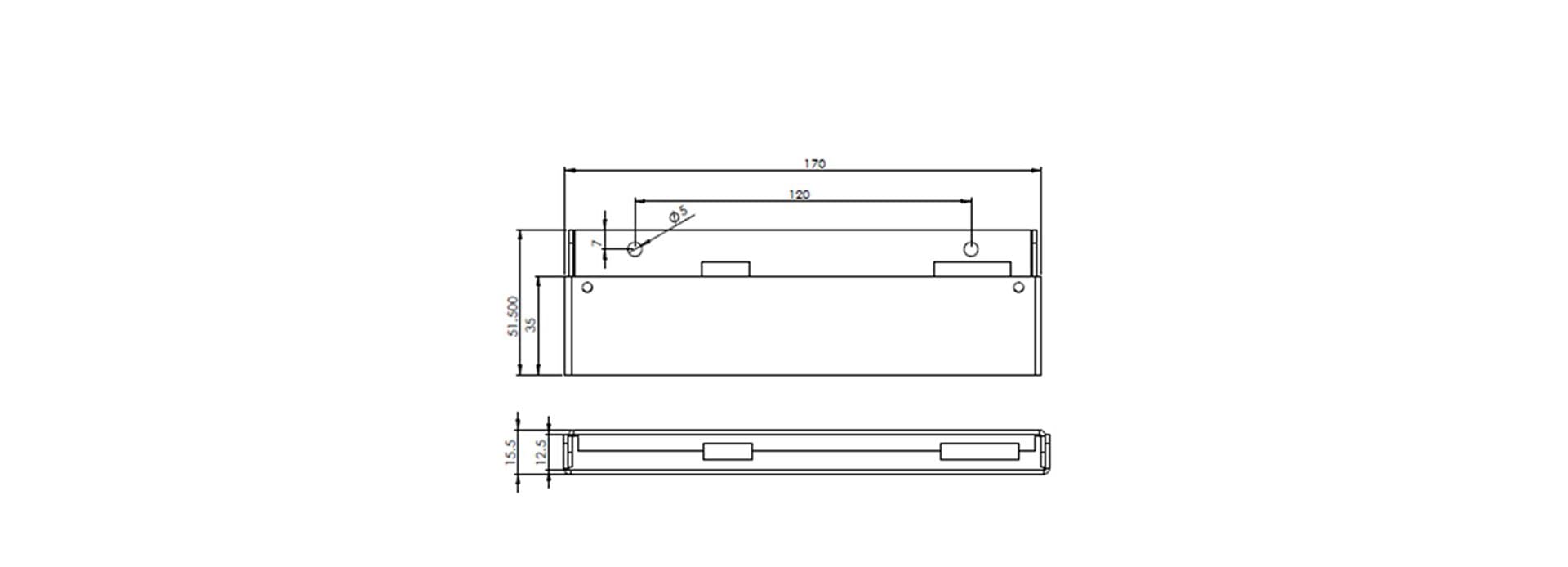

Exterior Dimension
Specification Parameters
Supply Voltage: | DC 8 – 30V | Operating Current: | Less than20MA（14MA/24V，17MA/24V） |
Maximum Input withstand Voltage: | 50V | Maximum Output Current: | 500MA |
Protection Circuit: | Power supply reverse polarity protection | Operating Temperature: | -40℃ - +80℃ |
Operating Humidity: | 10 – 90% | Protection Class: | IP-54 |
Shell Material: | Aluminum Alloy | Filled Material: | Thermal Conductive Silicone |
Detection Distance: | 25-80MM | Detects Magnetic Stripes: | N, S pole magnetic strip (30MM wide) |
Recommended Mounting Height: | 50MM | Recommended for Magnetic Stripes: | Width 30MM , Thickness 1.2MM |
Typical Research and Application Areas
