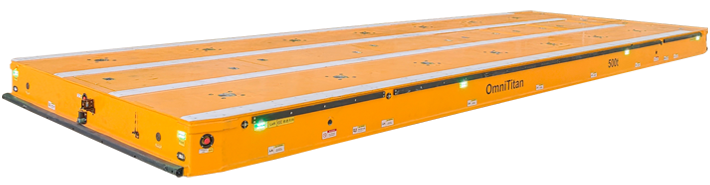

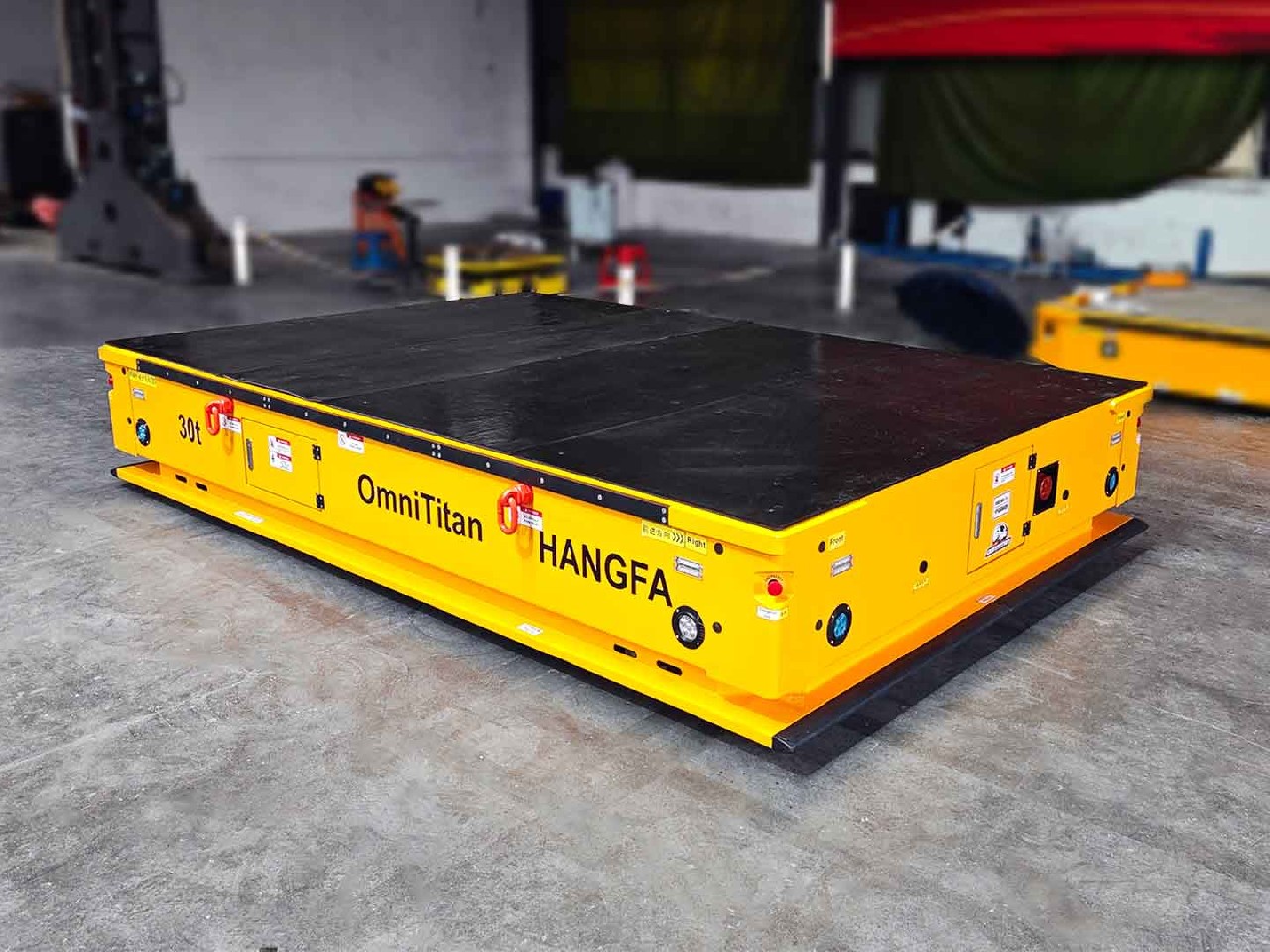

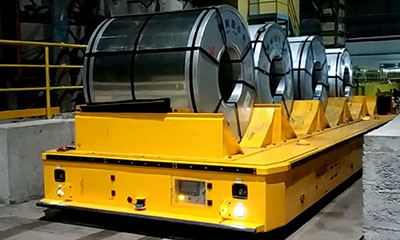

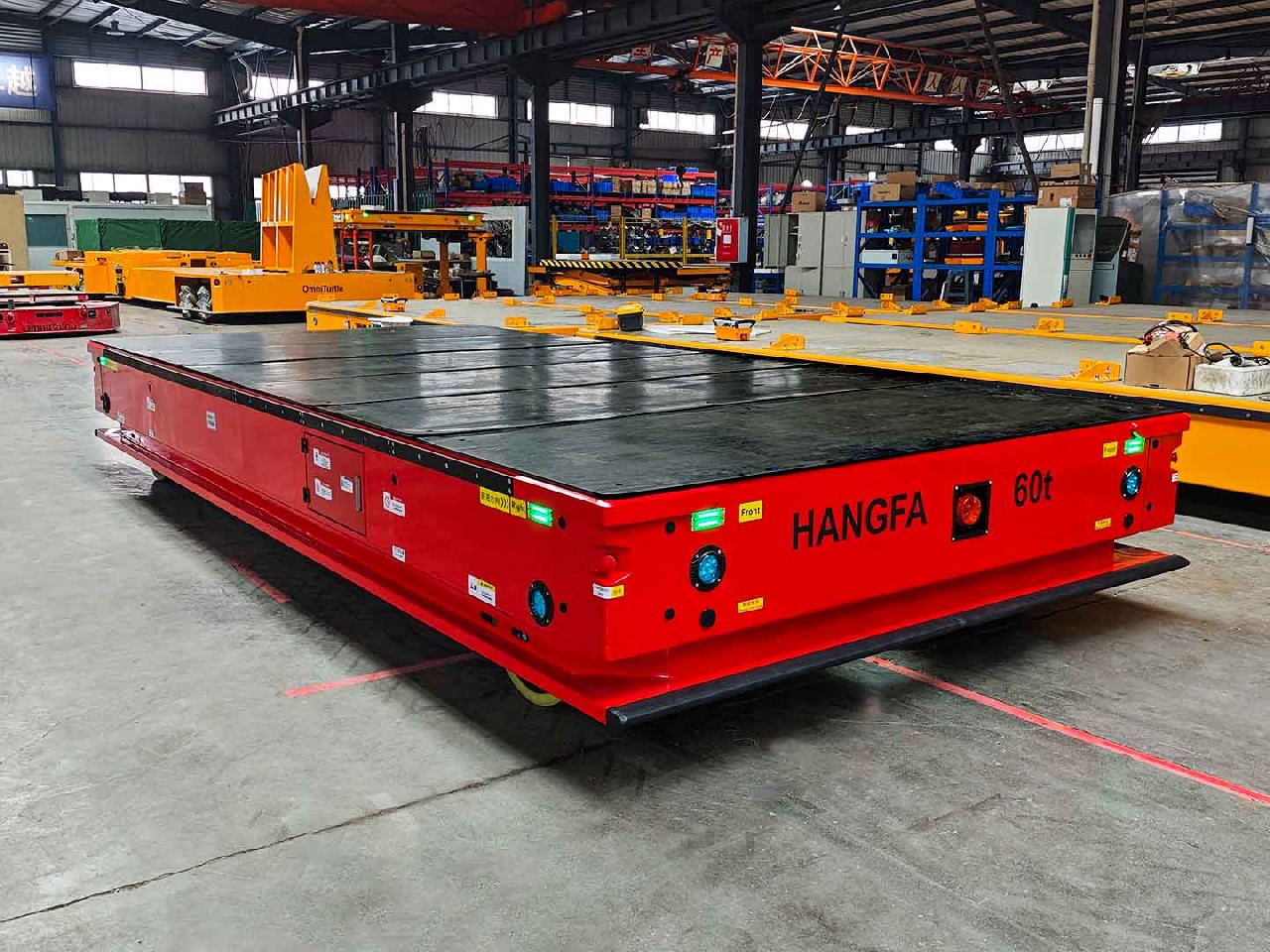

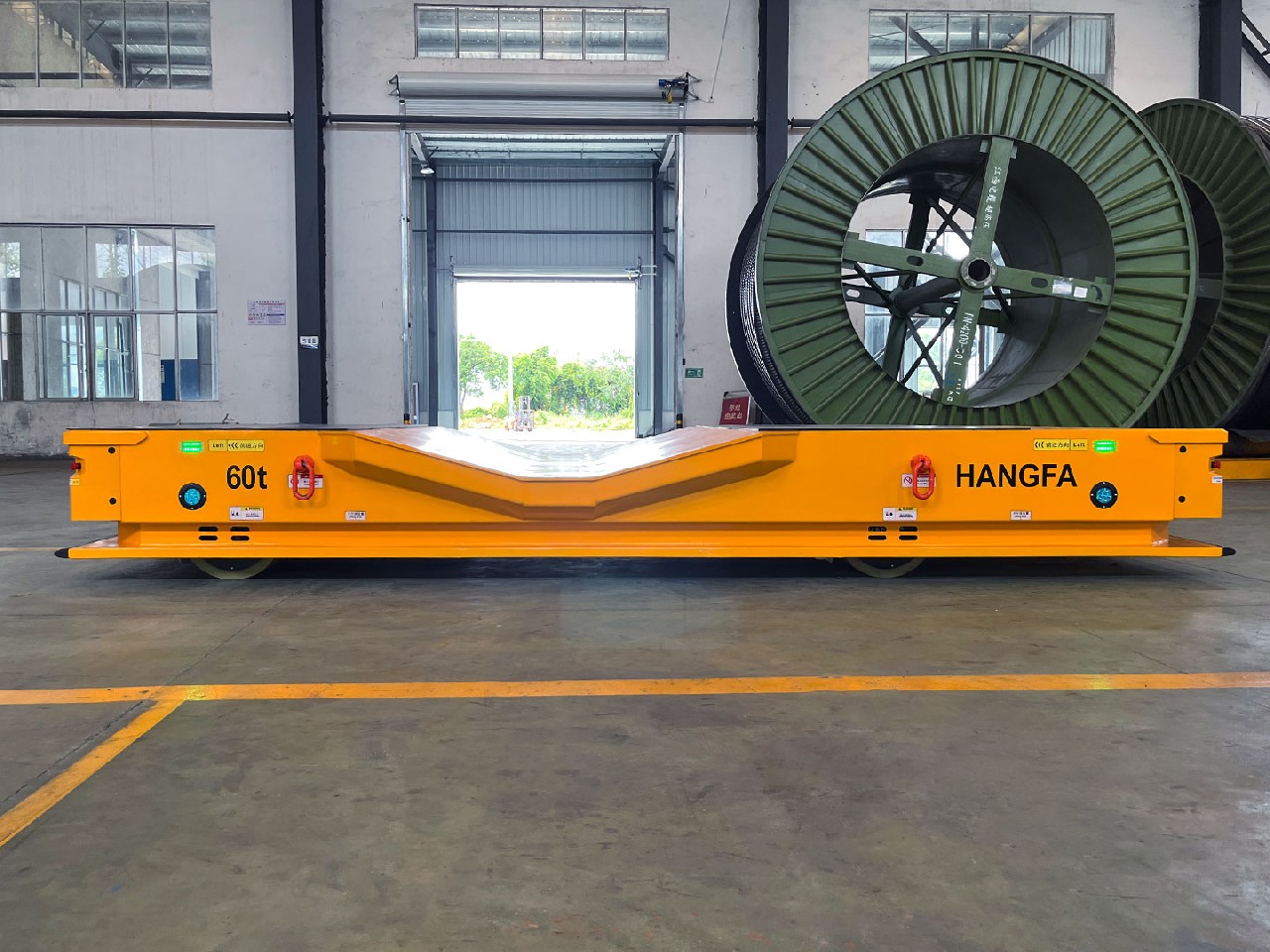

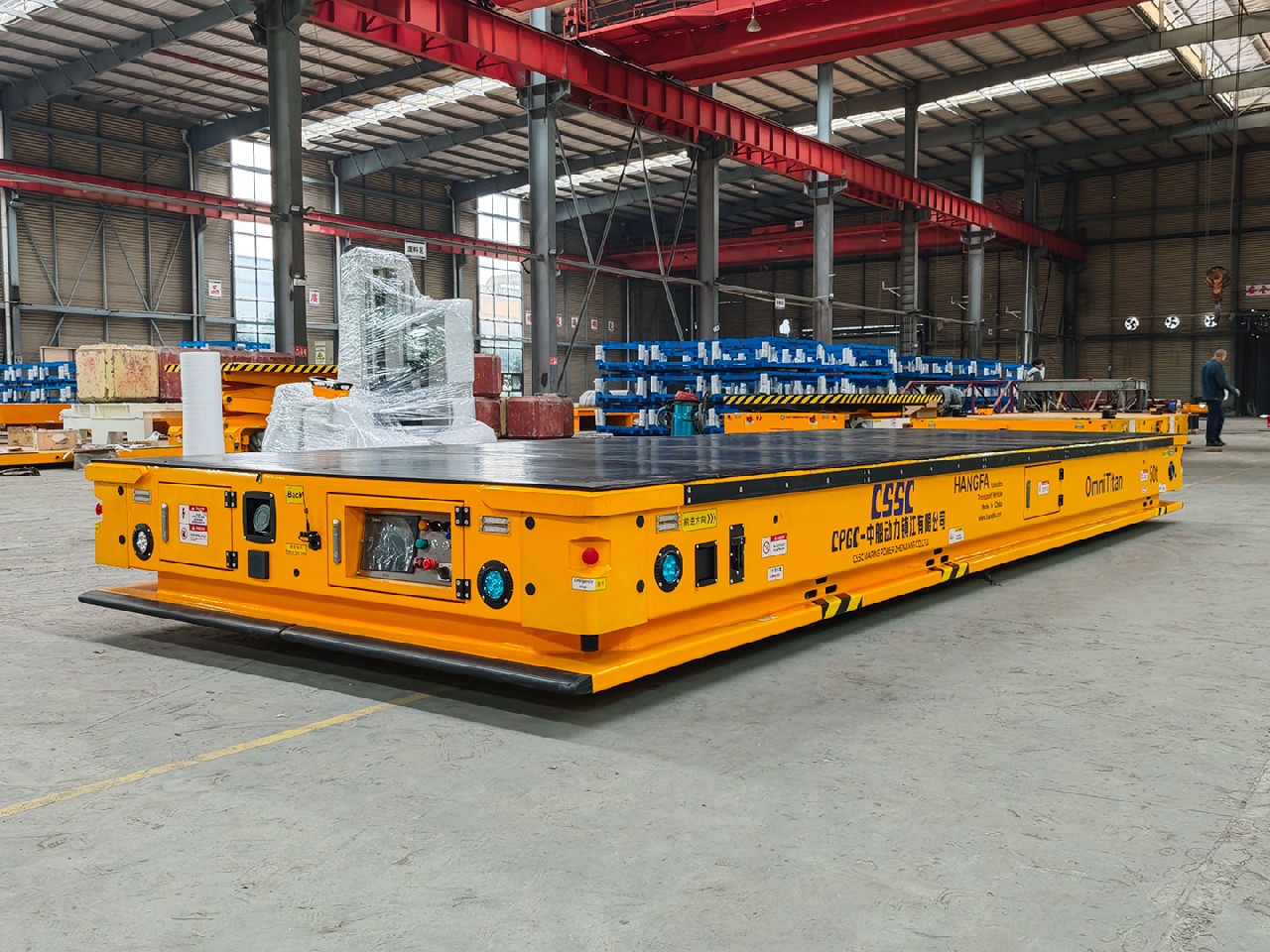

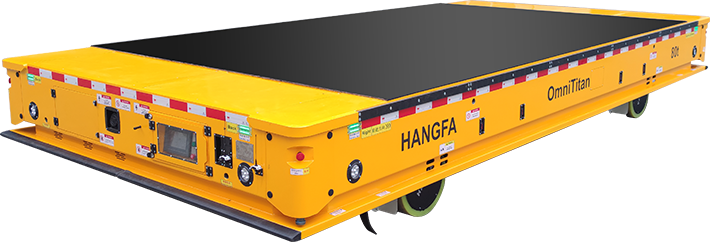

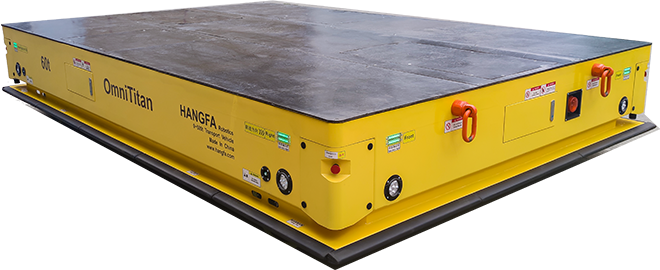

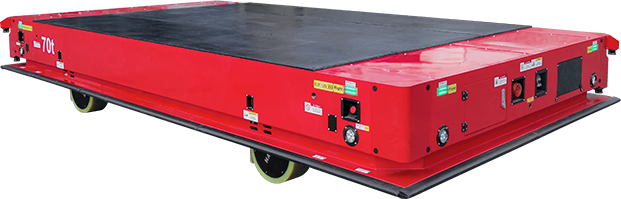

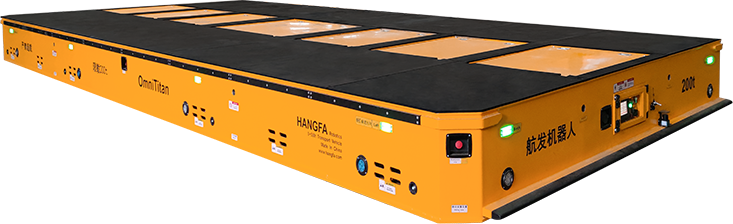

OmniTitan Self elevating type Differential speed Wheel Transporter

OmniTitan series transporters which can provide a load capacity of 0~500t for a single unit are especially suitable for the transportation of large-size and large-tonnage workpieces. It can be operated on self-leveling concrete steel plate and hard ground and has strong adaptability to ground conditions. As it has its own self- elevating function in addition to being used for directly carrying workpieces it can also be used to indirectly carry workpieces by drilling into the workpiece frame and carrying out self- elevating after lifting the workpiece frame. Upon request multiple OmniTitan transporters can be synchronized for lifting oversized parts remotely controlled or as a fully automated AGV transport system.

0~500t load capacity for one unit
Self-lifting differential speed wheel transporter body lifting
New Energy Automotive Grade Lithium Battery System
Flexible movement ability capable of running straight turning lateral movement oblique movement rotation and compound movements of the above movements
Strong ability to overcome obstacles
Adaptable to indoor and outdoor rain snow and low temperature environments

型号参数

Parameter 选中表格后，使用键盘方向键可左右滑动 ← →

Serial number	TA															TB									TR
Product specifications
Model No	TA24	TA40	TA60	TA80	TA100	TA150	TA200	TA250	TA300	TA180	TA270	TA360	TA450	TA540	TA720	TB80	TB120	TB160	TB160	TB240	TB320	TB400	TB480	TB560	TR40	TR60	TR80	TR100	TR150	TR200	TR250	TR300	TR400
Length mm（L）	3000	4000	5000	6000	5500	6500	7500	9000	11000	6000	7000	8500	10000	12000	16000	4000	5000	6000	5000	6500	8000	9000	10000	11000	5500	7000	8500	6500	8000	10000	12000	14000	17000
Width mm（W）	1700	2000			2500					3000						2000			2400						2600			3400
Height mm（Low State Hmin）	450	530			670					770						320			420						750			1100
Lifting Mode	Transporter Frame Lifting															Transporter Frame Lifting									Transporter Frame Lifting
Suspension/Transoporter Self-lifting Stroke mm（S）	150				200											80			100						300
Load Capacity
Maximum Total Weight t	24	40	60	80	100	150	200	250	300	180	270	360	450	540	720	80	120	160	160	240	320	400	480	560	40	60	80	100	150	200	250	300	400
Maximum Net Weight t	3	5	6	7	8	12	16	22	28	15	20	27	35	43	60	4	6	8	6	9	12	16	20	24	7	10	12	12	17	24	30	35	40
Rated Load Capacity t	20	30	50	70	80	120	160	200	240	140	200	270	340	400	500	70	110	150	150	225	300	375	450	520	30	45	60	80	120	160	200	240	320
Power Source
Battery Type	Lithium iron phosphate battery															Lithium iron phosphate battery									Lithium iron phosphate battery
Battery Capacity kWh	10	25			30	60		90		55	110		170		220	10	20		25	60			90	120	30		60	56	110		170		220
Typical Battery Endurance	12h（Customizable according to customer's requirement）															12h（Customizable according to customer's requirement）									12h（Customizable according to customer's requirement）
Full Discharge Charging Time	8h（Customizable for fast charging）															8h（Customizable for fast charging）									8h（Customizable for fast charging）
Charger Power Supply	AC220V/AC380V															AC220V/AC380V									AC220V/AC380V
Driving Unit
Number of Driving Units	4	4	6	8	4	6	8	10	12	4	6	8	10	12	16	4	6	8	4	6	8	10	12	14	4	6	8	4	6	8	10	12	16
Unit Model No	A06	A10			A25					A45						B20			B40						R10			R25
Wheel Diameter mm	250	310			457					500						250			310						559			848
Unit Rated Load Capacity t	6	10			25					45						20			40						10			25
Motor Type	AC motor															AC motor									AC motor
Suspension /Self-lifting Type	Hydraulic independent type															Hydraulic independent type									Hydraulic independent type
Wheel type	Polyurethane															Polyurethane									Rubber
Maximum Ground Pressure	10Mpa															15Mpa									5Mpa
Movement Features
Minimum Turning Radius	0m															0m									0m
Full Load Maximum Moving Speed	0-30m/min															0-20m/min									0-40m/min
Full Load Slope Moving Speed	0-20m/min															0-10m/min									0-20m/min
Lifting Speed	60-200mm/min															60-200mm/min									60-200mm/min
Moving Adjustable Accuracy	±2mm															±2mm									±2mm
Lifting Adjustable Accuracy	±1mm															±1mm									±1mm
Motion function	Straight, Oblique, Transverse, Rotation, Turning, etc. For details, please refer to the Movement Modes Introduction chapter.															Straight, Oblique, Transverse, Rotation, Turning, etc. For details, please refer to the Movement Modes Introduction chapter.									Straight, Oblique, Transverse, Rotation, Turning, etc. For details, please refer to the Movement Modes Introduction chapter.
Environment Condition
Applicable Ground	Concrete, self leveling, steel plate flooring, etc															Concrete, self leveling, steel plate flooring, etc									Concrete, self leveling, steel plate flooring, Asphalt, compacted soil, etc.
Full Load Climbing Ability	5%															3%									10%
No Load Climbing Ability	＞20%（Interference between the ground and the transporter frame needs to be considered）															＞10%（Interference between the ground and the transporter frame needs to be considered）									＞20%（Interference between the ground and the transporter frame needs to be considered）
Protection Level	IP54															IP54									IP54
Working Environment	Temperature：-15~+45℃；Humidity：0~95%，no condensation															Temperature：-15~+45℃；Humidity：0~95%，no condensation									Temperature：-15~+45℃；Humidity：0~95%，no condensation
Storage Environment	Temperature：-20~+50℃；Humidity：0~95%，no condensation															Temperature：-20~+50℃；Humidity：0~95%，no condensation									Temperature：-20~+50℃；Humidity：0~95%，no condensation
Others
Control Mode	Remote control operation/automatic navigation/receiving communication instructions from the upper computer for control															Remote control operation/automatic navigation/receiving communication instructions from the upper computer for control									Remote control operation/automatic navigation/receiving communication instructions from the upper computer for control
Movement Function	Straight movement, diagonal movement, lateral movement, rotation, turning, etc. For details, please refer to the chapter on the introduction of movement modes.															Straight movement, diagonal movement, lateral movement, rotation, turning, etc. For details, please refer to the chapter on the introduction of movement modes.									Straight movement, diagonal movement, lateral movement, rotation, turning, etc. For details, please refer to the chapter on the introduction of movement modes.
Weight Measurement Function	Weight measurement, center of gravity position measurement, overload alarm, eccentric load alarm															Weight measurement, center of gravity position measurement, overload alarm, eccentric load alarm									Weight measurement, center of gravity position measurement, overload alarm, eccentric load alarm

案例

Case

Transformer Industry

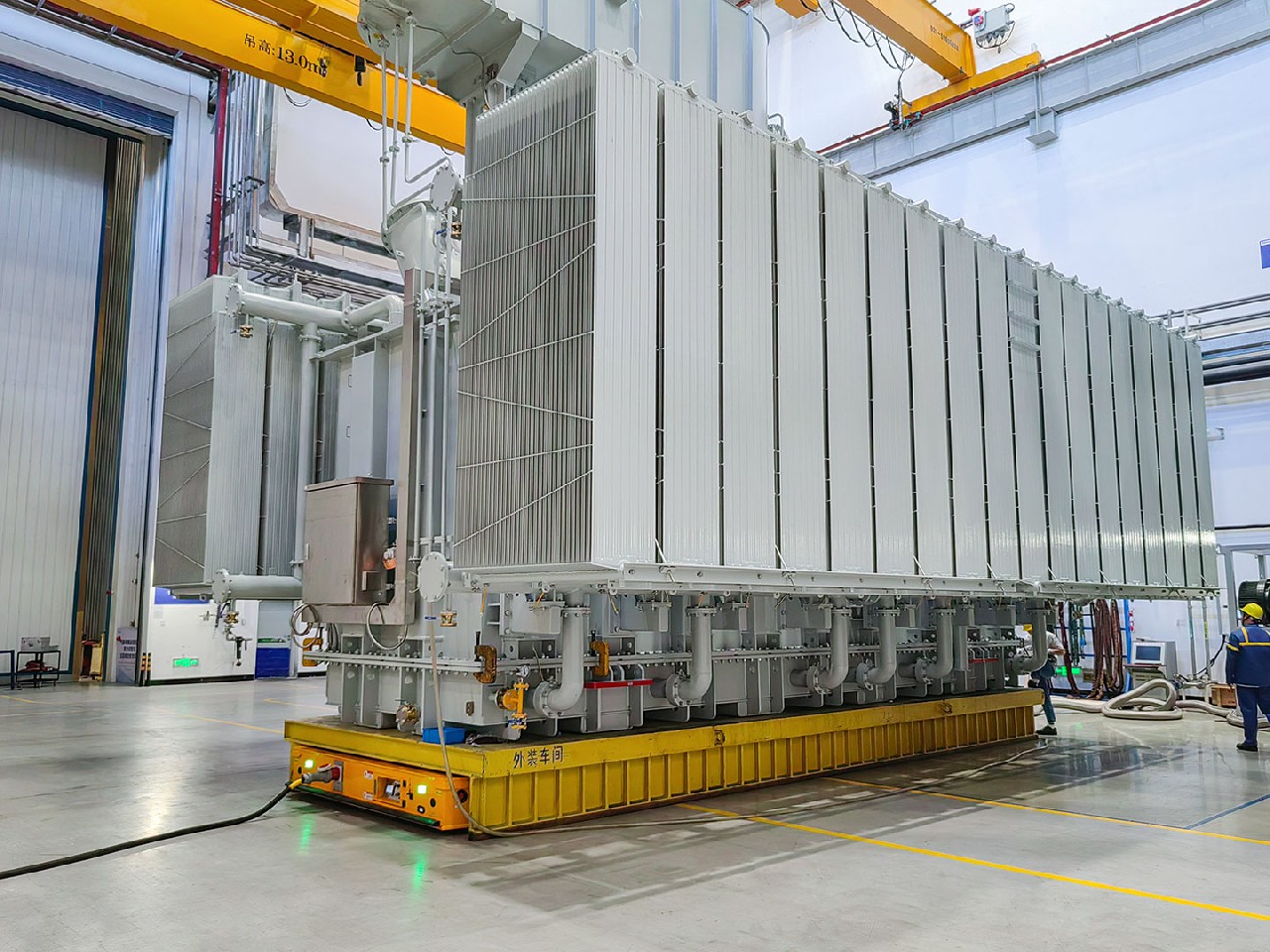

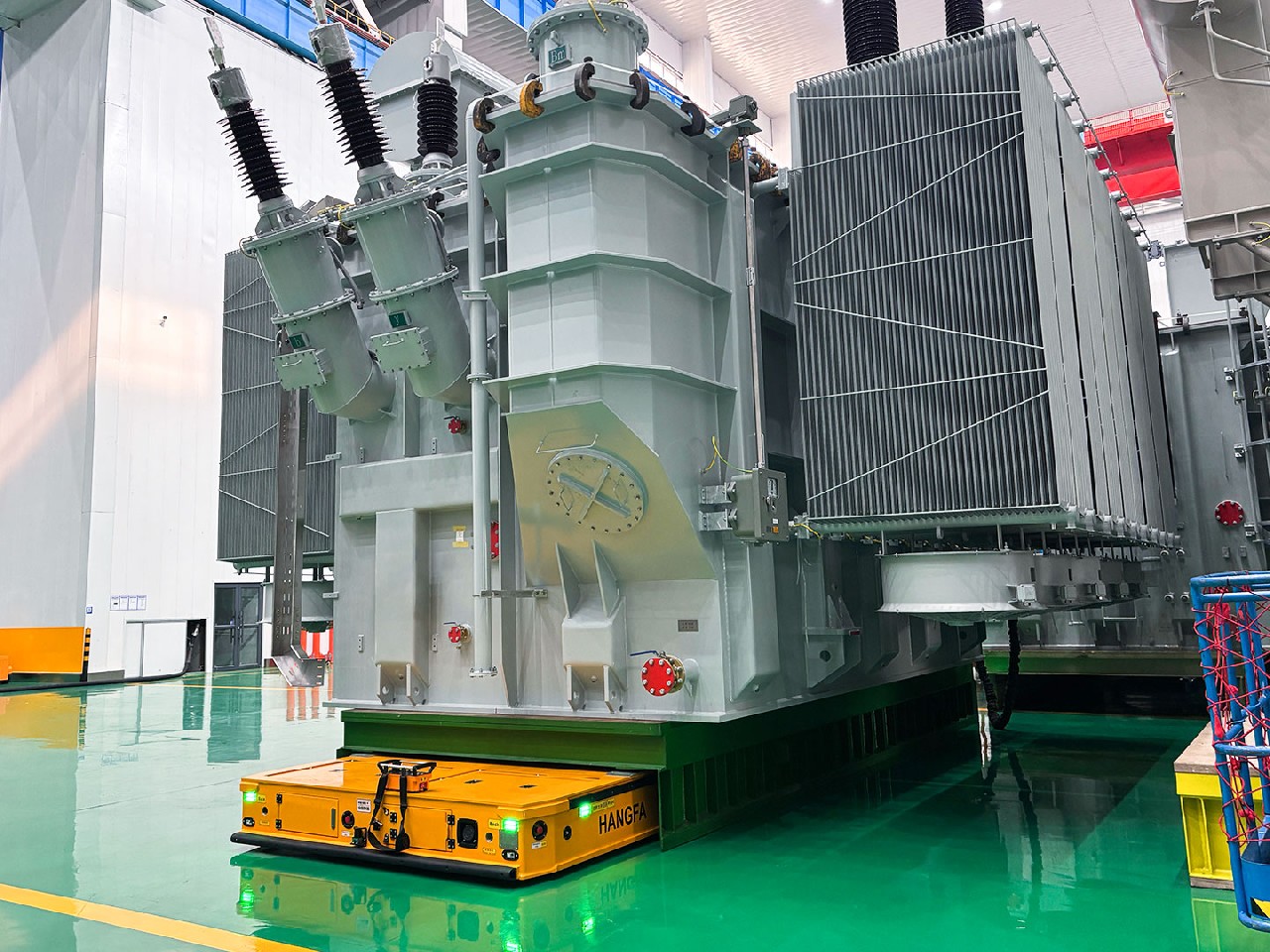

Application of 500t Wheeled Transporter for Transformer Transportation

#AGV #HeavyDutyAGV #HeavyDutyAGVManufacturer #TransformerTransporter #OmniDi···
更多>
Transformer Industry

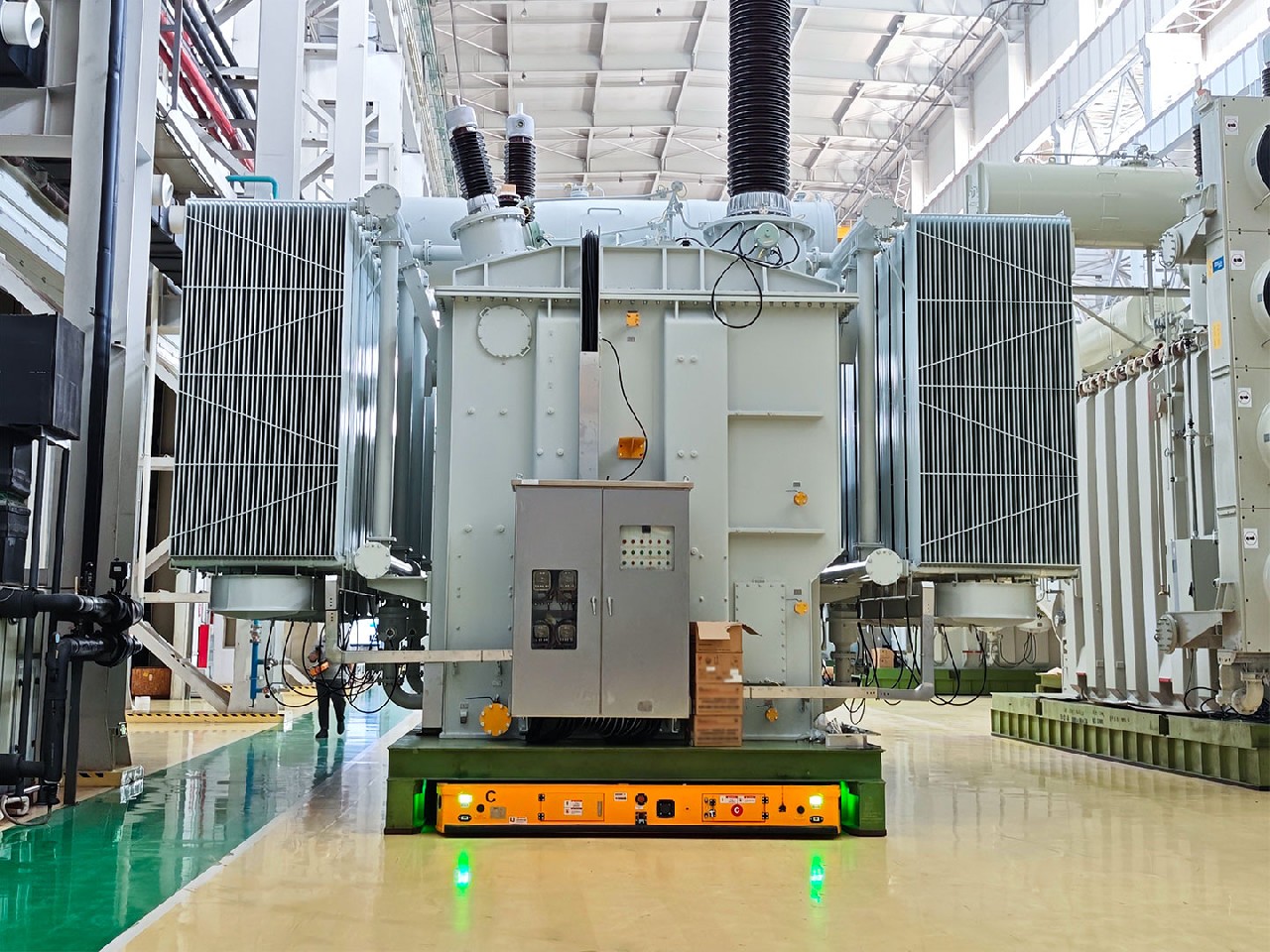

Application of 400t Wheeled Transport Vehicle for Transformer Transfer
